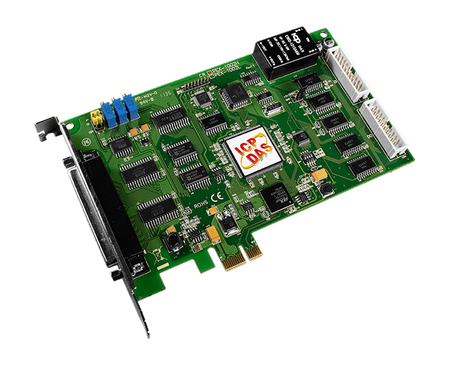

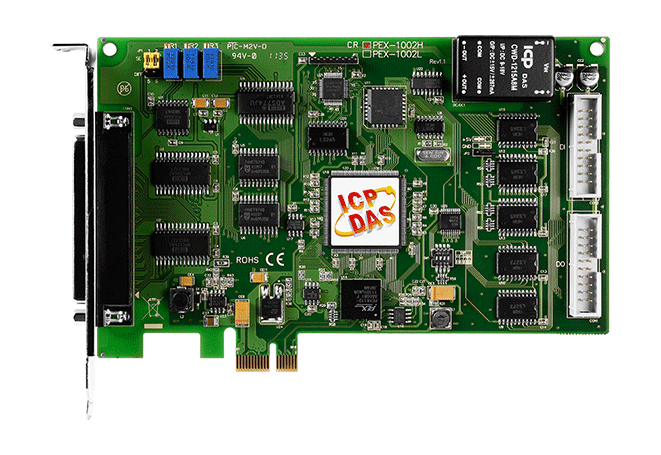

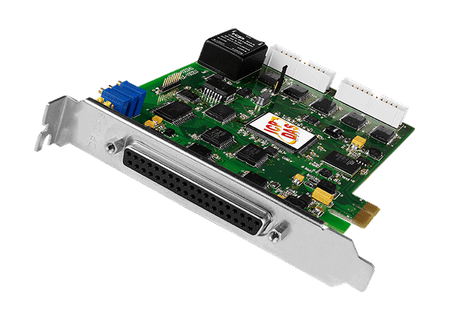

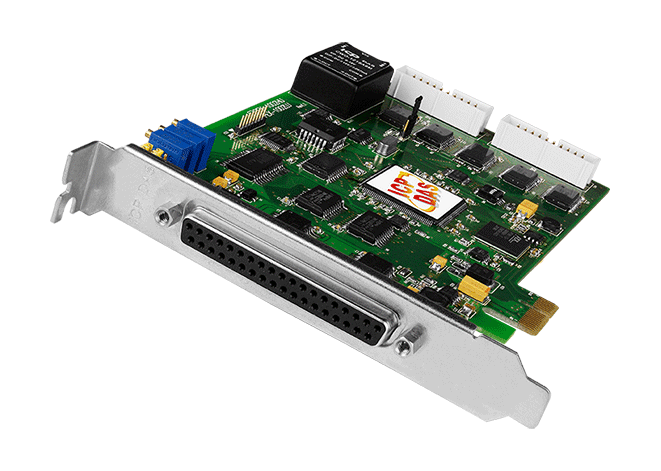

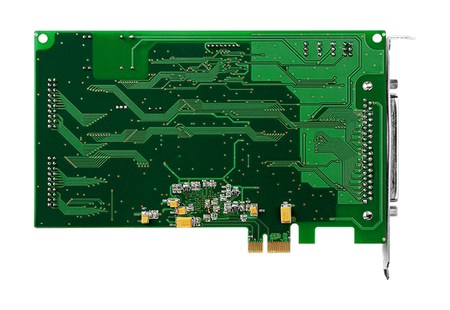

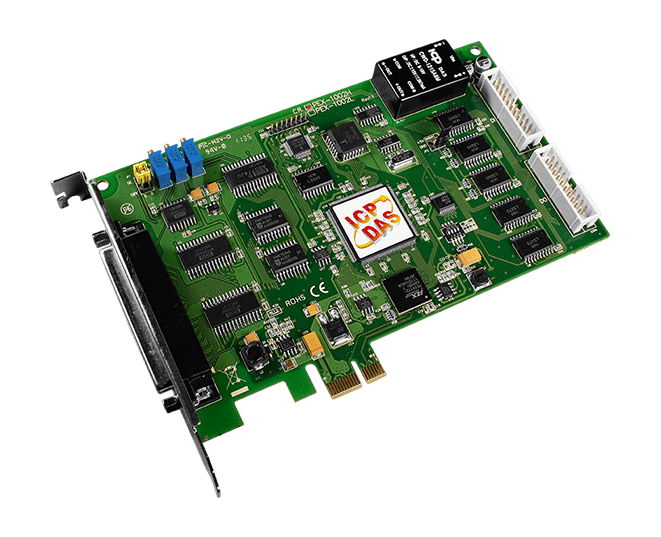

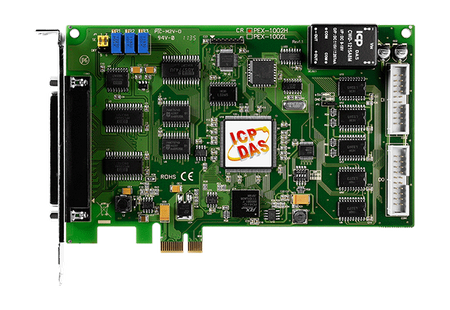

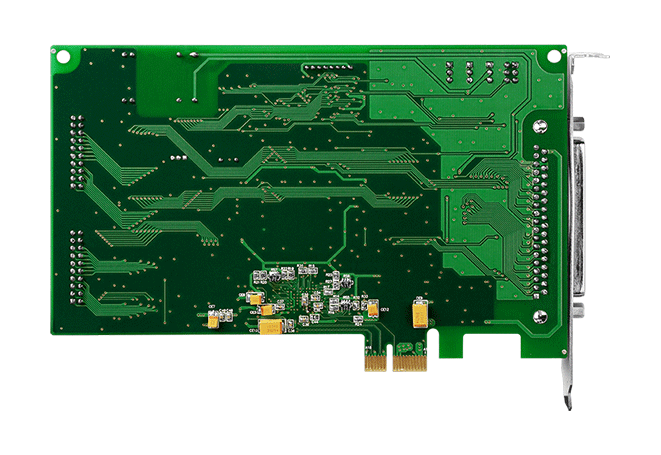

PEX-1002H

  • Karta PCIe x1 – 16/32 wejścia analogowe 12-bitowe High Gain 44 kS/sek, 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 3 liczniki 16-bitowe. W zestawie 1x złącze CA-4002.
  • PEX-1002H

Karta PCIe x1 – 16/32 wejścia analogowe 12-bitowe High Gain 44 kS/sek, 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 3 liczniki 16-bitowe. W zestawie 1x złącze CA-4002.


Features

  • 12-bit resolution, 100 kS/s high-speed AD converter.
  • 32 single-ended/ 16 differential inputs.
  • The max. sampling rate is 44 kS/s.
  • Programmable high gain: 1, 10, 100, 1000.
  • 16 digital input/16 digital output channels.
  • Internal/external trigger.
  • Half size board.
  • Digital input port can be set to pull-high or pull-low.
  • Supports PCI Express x1
  • Supports Card ID (SMD Switch)

Specifications

  • Analog Input

    • Channels: 32 single-ended/16 differential
    • A/D Converter: 12-bit, 8 μs Conversion time
    • Sampling Rate: 44 kS/s. max.
    • FIFO Size: N/A
    • Analog Input Range:
      Bipolar: +/- 10 V, +/- 1 V, +/- 0.1 V, +/- 0.01 V
    • Over voltage Protection: Continuous +/-35 Vp-p
    • Input Impedance: 10 MΩ/6 pF
    • Trigger Modes: Software, Internal programmable pacer, External (5 V/TTL compatible)
    • Data Transfer: Polling, Interrupt
    • Accuracy: 0.01 % of FSR ±1 LSB @ 25°C, ± 10 V
    • Zero Drift: +/- 4 ppm/°C of FSR

  • Digital Input

    • Channels: 16
    • Compatibility: 5 V/TTL
    • Input Voltage:
      Logic 0: 0.8 V max.
      Logic 1: 2.0 V min.
    • Response Speed: 500 KHz

  • Digital Output

    • Channels: 16
    • Compatibility: 5 V/TTL
    • Output Voltage:
      Logic 0: 0.4 V max.
      Logic 1: 2.4 V min.
    • Output Capability:
      Sink: 2.4 mA
      Source: 0.8 mA
    • Response Speed: 500 KHz

  • Timer/Counter

    • Channels 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
    • Resolution: 16-bit
    • Compatibility: 5 V/TTL
    • Input Frequency: 10 MHz max.
    • Reference Clock:
      Internal: 4 MHz

  • General

    • Bus Type: PCI Express x1
    • Data Bus: 16-bit
    • Card ID: Yes (4-bit)
    • I/O Connector:
      Female DB37 x 1
      20-pin box header x 2
    • Dimensions (L x W x D): 167 x 110 x 22 mm
    • Power Consumption: 800 mA @ +5 V
    • Operating Temperature: 0 ~ +60°C
    • Storage Temperature: -20 ~ +70°C
    • Humidity: 5 ~ 85% RH, non-condensing

Ordering Information

  • PEX-1002H CR – PCI Express, 32-ch, 12-bit, 44 kS/s High Gain Multi-function DAQ Board (RoHS)
    Includes one CA-4002 D-Sub connector.

Optional Accessories

  • CA-2002 – 20-pin flat cable,20 cm x 2

  • CA-2010 – 20-pin flat cable,1 M

  • CA-2020 – 20-pin flat cable 2 M

  • CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))

  • CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))

  • CA-3715DM-H – DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)

  • CA-3730DM-H – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)

  • CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)

  • CA-3750DM-H – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)

  • CA-4002 – 37-pin Male D-sub connector with plastic cover.

  • DB-1825 – Analog Input Screw terminal Board

  • DB-16P – Isolated Digital Input Daughter Board

  • DB-16R – Relay Output Daughter Board

  • DN-20/DN-20-381 – 20-pin Din-Rail mounting I/O connector board

  • 125 Ω, 0.1% DIP Resistors – 125 Ω External Resistor for use with Current Input
