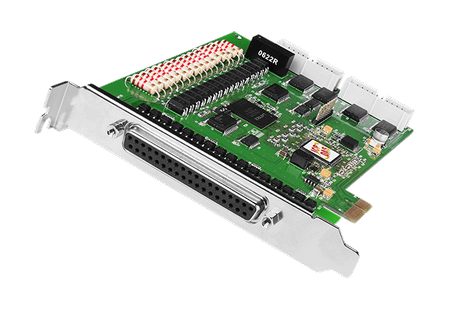

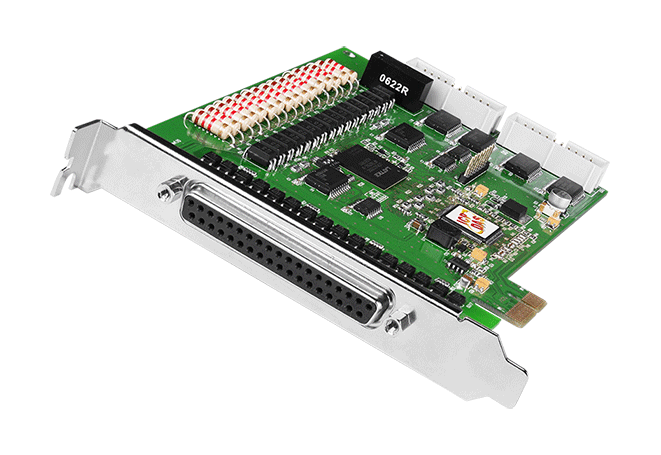

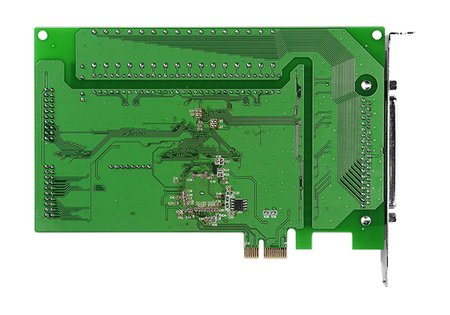

Karta PCIe x1 – 16 izolowanych wejść cyfrowych, 16 wejść cyfrowych TTL, 16 izolowanych wyjść cyfrowych OC (Sink/NPN) i 16 wyjść cyfrowych TTL. W zestawie 1x złącze CA-4002.
Features
- Support PCI Express x1
- 16-channel Optically-isolated Digital Input
- 16-channel Optically-isolated Digital Output (Sink, NPN)
- 16-channel 5 V/TTL Digital Output
- 16-channel 5 V/TTL Digital Input
- 3750 Vrms photo-isolation protection
- Built-in DC/DC converter with 3000 VDC isolated
- Two interrupt sources
- Output status readback function
- Card ID function
- SMD, short card, power saving
- Supports Plug & Play to obtain I/O resources
- No more manually setting of I/O address and IRQ
Specifications
- Isolated Digital Input
- Isolation Voltage: 3750 Vrms
- Channels: 16
- Compatibility: Optical
- Input Voltage:
Logic 0: 0 ~ 1 V
Logic 1: 9 ~ 24 V (Logic 1: Min. 7 V; Max. 30 V) - Input Impedance: 1.2 KΩ, 1 W
- Response Speed: 4 kHz (Typical)
- Isolated Digital Output
- Isolation Voltage: 3750 Vrms
- Channels: 16
- Compatibility: Sink (NPN), Open Collector
- Output Capability: 100 mA/+30 V for each channel @ 100% duty
- Response Speed: 4 kHz (Typical)
- Non-isolated Digital Input
- Channels: 16
- Compatibility: 5V/TTL
- Input Voltage:
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. - Response Speed: 500 kHz
- Non-isolated Digital Output
- Channels: 16
- Compatibility: 5V/TTL
- Output Voltage:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. - Output Capability:
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V - Response Speed: 500 kHz
- General
- Bus Type: PCI Express x 1
- Data Bus: 8-bit
- Card ID: Yes(4-bit)
- I/O Connector:
Female DB37 x 1
20-pin box header x 2 - Dimensions (L x W x D): 163 x 116 x 22 mm
- Power Consumption: 600 mA @ +5 V
- Operating Temperature: 0 ~ +60°C
- Storage Temperature: -20 ~ +70°C
- Humidity: 5 ~ 85% RH, non-condensing
Ordering Information
- PEX-730 CR – PCI Express, 32-channel isolated digital I/O (Input Logic High: 9~24 V) & 32-channel TTL digital I/O board. (current sinking) (RoHS). Includes one CA-4002 D-Sub connector.
Optional Accessories
- CA-2002 – 20-pin flat cable,20 cm x 2
- CA-2010 – 20-pin flat cable,1 M
- CA-2020 – 20-pin flat cable 2 M
- CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
- CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
- CA-3715DM-H – DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
- CA-3730DM-H – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
- CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
- CA-3750DM-H – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
- CA-4002 – 37-pin Male D-sub connector with plastic cover.
- DB-37 – Directly connect signal to D-sub 37-pin connector
- DN-37 – DIN Rail Mounting 37-pin Connector
- DN-20 – Two 20-pin header DIN-rail terminal board
- DB-16P – 16-channel isolated D/I board
- DB-16R – 16-channel relay board
- ADP-20/PCI – 20-pin extender
