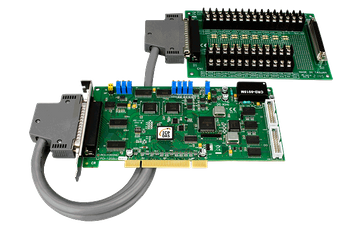

Karta 3.3/5V PCI -16/32 wejścia analogowe 12-bitowe High Gain 44 kS/sek, 2 wyjścia analogowe 12-bitowe, 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 3 liczniki 16-bitowe. W zestawie 1x złącze CA-4002.
Features
- Universal PCI interface supports both 5 V and 3.3 V PCI bus.
- 12-bit 330 kHz A/D converter
- AI channels: 32 single-ended/16 differential inputs, 8 K word FIFO buffer
- Total sampling rate: up to 44 K samples/s
- Programmable gain: 0.5, 1, 5, 10, 50, 100, 500, 1000
- Three different external trigger: post-trigger, pre-trigger, middle trigger
- Internal/external A/D trigger
- 16 digital input/16 digital output channels
- Two 12-bit DA channels, 2 MHz throughput per channel (max.)
- High speed data transfer rate up to 2.7 Mword/sec.
- DB-889D and DB-1825 accessories for expanding channels
- Pull-high/ pull-low resistors for DI channels.
- Half size board
Specifications
- Analog Input
- Channels: 32 single-ended/16 differential
- AD Conversion: 12-bit, 3 μs conversion time
- Sampling Rate: 44 kS/s. max.
- Analog Input Range:
Bipolar: +/- 10 V, +/- 5 V, +/- 1 V, +/- 0.5 V, +/- 0.1 V, +/- 0.05 V, +/- 0.01 V, +/- 0.005 V
Unipolar: 0 ~ 10 V, 0 ~1 V, 0 ~ 0.1 V, 0 ~ 0.01 V - FIFO Size: 8192 samples
- Over voltage Protection: Continuous +/-35 Vp-p
- Input Impedance: 10 MΩ/6 pF
- Trigger Modes: Software, Internal programmable pacer, External (5 V/TTL compatible)
- Data Transfer: Polling
- Accuracy: 0.01 % of FSR ±1 LSB @ 25°C, ± 10 V
- Zero Drift: +/- 2 ppm/°C of FSR
- Analog Output
- Channels: 2
- Resolution: 12-bit
- Accuracy: 0.06% of FSR ± 1 LSB @ 25°C, ± 10 V
- Output Range: Bipolar:+/5 V, +/-10 V
- Output Driving: +/- 5 mA
- Slew Rate: 8.33 V/μs
- Output Impedance: 0.1 Ω max.
- Operating Mode: Software
- Digital Input
- Channels: 16
- Compatibility: 5 V/TTL
- Input Voltage:
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. - Response Speed: 2.0 MHz (Typical)
- Digital Output
- Channels: 16
- Compatibility: 5 V/TTL
- Output Voltage:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. - Output Capability:
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V - Response Speed: 2.0 MHz (Typical)
- Channels: 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
- Resolution: 16-bit
- Compatibility: 5 V/TTL
- Input Frequency: 10 MHz max.
- Reference Clock:
Internal: 8 MHz - General
- Bus Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
- Data Bus: 16-bit
- Card ID: Yes(4-bit)
- I/O Connector:
Female DB37 x 1
Male 20-bit ribbon x 2 - Dimensions (L x W x D): 200 x 105 mm
- Power Consumption: 300 mA @ +5 V
- Operating Temperature: 0 ~ 60 °C
- Storage Temperature: -20 ~ 70 °C
- Humidity: 5 ~ 85% RH, non-condensing
Timer/Counter
Ordering Information
- PCI-1802HU CR – Universal PCI, 2-ch, 12-bit, 40 kS/s High Gain Multi-function DAQ Board (8 K word FIFO) (RoHs) Includes one CA-4002 D-Sub connector.
Optional Accesories
- CA-2002 – 20-pin flat cable,20 cm x 2
- CA-2010 – 20-pin flat cable,1 M
- CA-2020 – 20-pin flat cable 2 M
- CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
- CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
- CA-3715DM-H – DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
- CA-3730DM-H – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
- CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
- CA-3750DM-H – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
- CA-4002 – 37-pin Male D-sub connector with plastic cover.
- DB-1825 – Analog Input Screw terminal Board
- DB-8225 – Screw terminal board , filter circuitry can be added for PCI-1800H, 1800L, 1800HU, 1800LU
- DB-16P – Isolated Digital Input Daughter Board
- DB-16R – Relay Output Daughter Board
- DN-37 – DIN Rail Mounting 37-pin Connector
- DN-20/DN-20-381 – 20-pin Din-Rail mounting I/O connector board
- 125 Ω, 0.1% DIP Resistors – 125 Ω External Resistor for use with Current Input
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
