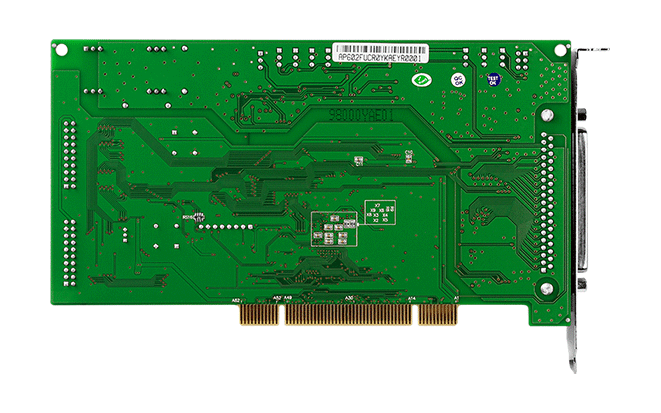

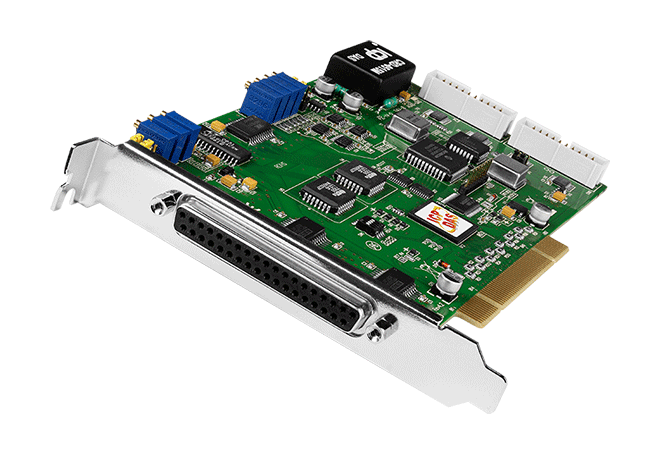

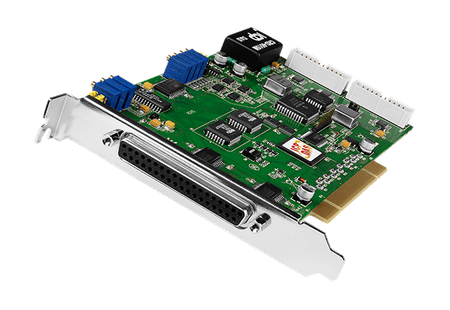

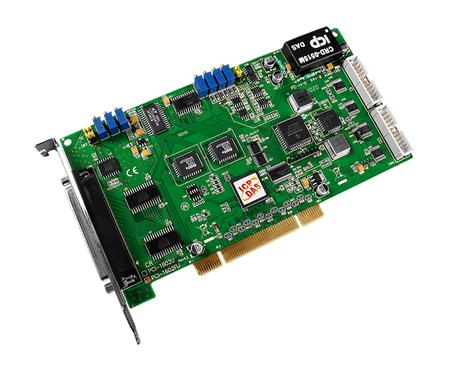

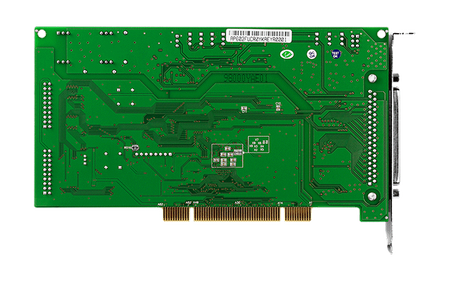

PCI-1602FU

  • Karta 3.3/5V PCI – 16/32 wejścia analogowe 16-bitowe 200 kS/sek, 2 wyjścia analogowe 12-bitowe, 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 3 liczniki 16-bitowe. W zestawie 1x złącze CA-4002.
  • PCI-1602FU

Karta 3.3/5V PCI – 16/32 wejścia analogowe 16-bitowe 200 kS/sek, 2 wyjścia analogowe 12-bitowe, 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 3 liczniki 16-bitowe. W zestawie 1x złącze CA-4002.


Features

  • Universal PCI interface, supports both +5 V and +3.3 V PCI bus.
  • Card ID function
  • Pull-high/ pull-low resistors for DI
  • 16-channels digital Input
  • 16-channels digital output
  • 2 channels, 12-bit analog output
  • 16-bit high resolution, 200 kS/s A/D converter
  • 32 single-ended/16 differential analog inputs
  • Programmable low gain:1/2/4/8
  • Built-in 8 k WORD FIFO
  • Built-in MagicScan controller
  • Support internal/external trigger
  • Three external triggers: post-trigger, pre-trigger, middle-trigger

Specifications

  • Analog Input

    • Channels: 32 single-ended/16 differential
    • A/D Converter: 16-bit, 2 μs conversion time
    • Sampling Rate: 200 kS/s. max.
    • FIFO Size: 8192 samples
    • Over voltage Protection: Continuous +/-35 Vp-p
    • Input Impedance: 10 MΩ/6 pF
    • Trigger Modes: Software, Internal programmable pacer, External (5 V/TTL compatible)
    • Data Transfer: Polling
    • Accuracy: 0.01 % of FSR ±1 LSB @ 25°C, ± 10 V
    • Zero Drift: +/- 2 ppm/°C of FSR

  • Analog Output

    • Channels: 2
    • Resolution: 12-bit
    • Accuracy: 0.06% of FSR ± 1 LSB @ 25°C, ± 10 V
    • Output Range: Bipolar:+/5 V, +/-10 V
    • Output Driving: +/- 5 mA
    • Slew Rate: 8.33 V/μs
    • Output Impedance: 0.1 Ω max.
    • Operating Mode: Software

  • Digital Input
    • Channels: 16
    • Compatibility: 5 V/TTL
    • Input Voltage:
      Logic 0: 0.8 V max.
      Logic 1: 2.0 V min.
    • Response: 3.0 MHz (Typical)

  • Digital Output
    • Channels: 16
    • Compatibility: 5 V/TTL
    • Output Voltage:
      Logic 0: 0.4 V max.
      Logic 1: 2.4 V min.
    • Output Capability:
      Sink: 2.4 mA @ 0.8 V
      Source: 0.8 mA @ 2.0 V
    • Response Speed: 3.0 MHz (Typical)

  • Timer/Counter

    • Channels: 3 (Independent x 1/Internal pacer x 1/External pacer x 1)
    • Resolution: 16-bit
    • Compatibility: 5 V/TTL
    • Input Frequency: 10 MHz max.
    • Reference Clock:
      Internal: 8 MHz

  • General

    • Bus Type: 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
    • Data Bus: 16-bit
    • Card ID: Yes(4-bit)
    • I/O Connector:
      Female DB37 x 1
      Male 20-bit ribbon x 2
    • Dimensions (L x W x D): 188 x 105 x 22 mm
    • Power Consumption: 300 mA @ +5 V
    • Operating Temperature: 0 ~ +60°C
    • Storage Temperature: -20 ~ +70°C
    • Humidity: 5 ~ 85% RH, non-condensing

Ordering Information

  • PCI-1602FU – Universal PCI, 32ch, 16-bit, 200 kS/s Low Gain Multi-function DAQ Board (8 K word FIFO) Includes one CA-4002 D-Sub connector.

Optional Accessories

  • ADP-20/PCI – Extender, Extended dual 20-pin flat-cable connector to PC slot window

  • CA-2002 – 20-pin flat cable,20 cm x 2

  • CA-2010 – 20-pin flat cable,1 M

  • CA-2020 – 20-pin flat cable 2 M

  • CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))

  • CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))

  • CA-3715DM-H – DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)

  • CA-3730DM-H – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)

  • CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)

  • CA-3750DM-H – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)

  • CA-4002 – 37-pin Male D-sub connector with plastic cover.

  • DB-1825 – Analog Input Screw terminal Board

  • DB-16P – Isolated Digital Input Daughter Board

  • DB-16R – Relay Output Daughter Board

  • DN-20 – 0-pin DIN-RAIL mounting I/O connector board

  • DN-37 – DIN Rail Mounting 37-pin Connector

  • 125 Ω, 0.1% DIP Resistors – 125 Ω External Resistor for use with Current Input
