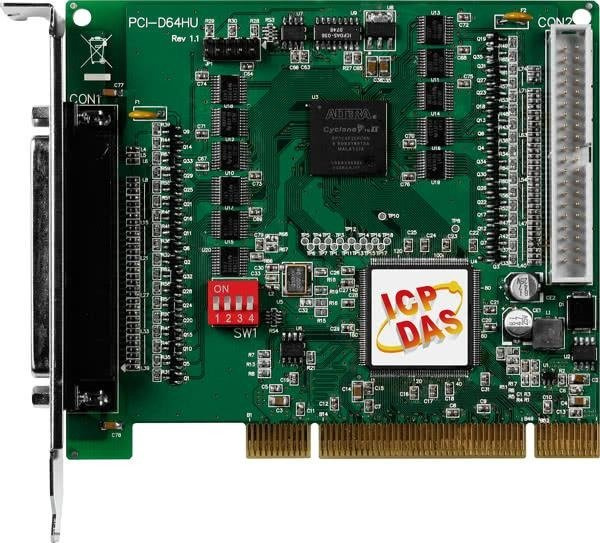

Karta 3.3/5V PCI – 32 szybkie wejścia cyfrowe TTL z programowalnym filtrem cyfrowym, 32 szybkie wyjścia cyfrowe TTL i 3 liczniki 16-bitowe. W zestawie 1x kabel CA-4037W i 2x złącze CA-4002.
Features
- Support 32-bit, 33 MHz Universal PCI bus
- 32-CH 5 V TTL digital inputs
- 32-CH 5 V TTL digital outputs
- 2-CH bus mastering scatter/gather DMA
- Data transfer rate up to 40 MB/s for each channel
- Support 4 data transfer modes:
• Direct program control mode
• Internal timer pacer mode
• External clock mode (DI only)
• Handshaking mode - On board 1 k/2 k DWORD FIFO for DI/DO respectively
- DO FIFO support ring buffer mode
- No bus loading in repetitive pattern generation application
- Programmable input digital filter for all input signals including handshaking and trigger signals
Specifications
- Digital Input
- Channels: 32
- Compatibility: 5 V/TTL
- Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. - Handshaking Signals: I_REQ input, I_ACK output, I_TRG input
- Digital Output
- Channels: 32
- Compatibility: 5 V/TTL
- Output Voltage:
Logic 0: 0.55 V max.
Logic 1: 2.0 V min. - Output Capability:
Sink: 64 mA @ 0.55 V
Source: -32 mA @ 2.0 V - Handshaking Signals: O_REQ output, O_ACK input, O_TRG output
- Transfer Speed: 40 MB/sec for DI and DO simultaneously (max.)
- Programmable Digital Filter
- Applicable Signals: All input signals (including 32 DI signals, I_REQ, I_TRG and O_ACK)
- Max. removable noise width: (1 ~ 127) x 25 ns
- Programmable Pulse Extender
- Applicable Signals: O_REQ
- Pulse width: (2 ~ 256) x 25 ns
- Timer/Counter
- Channels: 3
- Resolution: 16-bit
- Input Frequency: 2.5 ~ 20 MHz
- Timer 0: Clock source of DI
- Timer 1: Clock source of DO
- Timer 2: Base clock of Timer 0 and Timer 1
- Interrupt
- Sources: O_ACK, I_REQ, Timer 0, Timer 1 and Timer 2
- On Board FIFO
- DI/DO:
1 k DWORD (32-bit)
2 k DWORD (32-bit) - Size in Ring Buffer Mode: 2 ~ 2 k DWORD (32-bit), DO only
- General
- Bus Type: Universal PCI, 32-bit, 33 MHz
- I/O Connector:
Female DB37 x 1
40-pin Box header x 1 - Dimensions (L x W x D): 120 x 105 x 22 mm
- Power Consumption: 200 mA @ +5 V typical (output no load)
- Operating Temperature: 0 ~ +60°C
- Storage Temperature: -20 ~ +70°C
- Humidity: 5 ~ 85% RH, non-condensing
Ordering Information
- PCI-D64HU CR – 40 MB/s High-speed 32-CH DI and 32-CH DO Universal PCI DIO Card (RoHS)
One CA-4037W cable and two CA-4002 D-Sub connectors includes.
Optional Accessories
- CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))
- CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))
- CA-3715DM-H – DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)
- CA-3730DM-H – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)
- CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
- CA-3750DM-H – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)
- DN-37 – DIN Rail Mounting 37-pin Connector
- DN-37-381 - DIN-Rail Mounting 37-pin Connector (Pitch=3.81 mm)
- DB-37 – Directly connect signal to D-sub 37-pin connector
- CA-4002 – 37-pin Male D-sub connector with plastic cover.
- CA-4037W – 40-pin flat to D-sub 37-pin female cable 24 cm.
