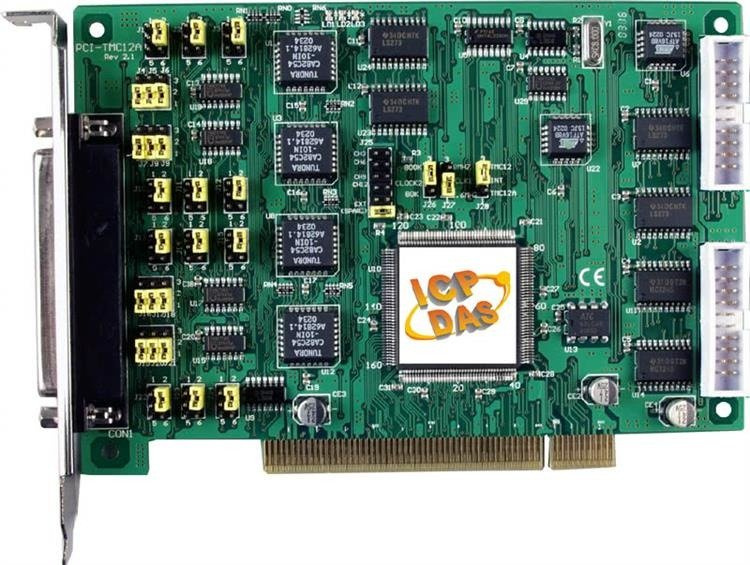

PCI-TMC12A

  • Karta 5V PCI – 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 12 liczników 16-bitowych TTL. W zestawie 1x złącze CA-4002.
  • PCI-TMC12A

Karta 5V PCI – 16 wejść cyfrowych TTL, 16 wyjść cyfrowych TTL i 12 liczników 16-bitowych TTL. W zestawie 1x złącze CA-4002.


Features

  • 4 onboard 8254 timer/counter chips
  • 12 independent 16-bit timers/counters
  • 12 external clock inputs
  • 12 external gate control inputs
  • 12 timer/counter output channels
  • 16-bit timer/counter can be cascaded to create 32/48-bit timer/counter
  • Gate input can be either an external signal or the output of a previous timer/counter channel
  • Four interrupt sources
  • Two internal clock sources
  • 16 TTL D/I channels and 16 TTL D/O channels
  • Drop-in replacement for PCI-TMC12 without any need for software/driver/wiring modification
  • More flexible interrupt mechanism
  • Hardware mechanism for the generation of two starting-clocks

Specifications

  • Digital Input

    • Channels: 16
    • Compatibility: 5 V/TTL
    • Input Voltage:
      Logic 0: 0.8 V max.
      Logic 1: 2.0 V min.
    • Response Speed: 2.0 MHz (Typical)

  • Digital Output

    • Channels: 16
    • Compatibility: 5 V/TTL
    • Output Voltage
      Logic 0: 0.4 V max.
      Logic 1: 2.4 V min.
    • Output Capability
      Sink: 24 mA @ 0.8 V
      Source: 15 mA @ 2.0 V
    • Response Speed: 2.0 MHz (Typical)

  • Timer/Counter

    • Channels: 12 (Independent x 12)
    • Resolution: 16-bit
    • Compatibility: 5 V/TTL
    • Input Frequency: 10 MHz max.
    • Reference Clock: Internal: 8 MHz

  • General

    • Bus Type: 5V PCI, 32-bit, 33 MHz
    • Data Bus: 16-bit
    • Card ID: No
    • I/O Connector
      Female DB37 x 1
      20-pin box header x 2
    • Dimensions (L x W x D): 150 x 105 x 22 mm
    • Power Consumption: 500 mA @ +5 V
    • Operating Temperature: 0 ~ +60°C
    • Storage Temperature: -20 ~ +70°C
    • Humidity: 5 ~ 85% RH, non-condensing

Ordering Information

  • PCI-TMC12A CR – 12-channel Timer/Counter Board (RoHS)
    Includes one CA-4002 D-Sub connector.

Optional Accessories

  • CA-2002 – 20-pin flat cable, 20 cm x 2

  • CA-2010 – 20-pin flat cable,1 M

  • CA-2020 – 20-pin flat cable 2 M.

  • CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))

  • CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))

  • CA-3715DM-H – DB-37 Male-Male Cable, 1.5 M, 180°. (RoHS)

  • CA-3730DM-H – DB-37 Male-Male Cable, 3.0 M, 180°. (RoHS)

  • CA-3750DM – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)

  • CA-3750DM-H – DB-37 Male-Male Cable, 5.0 M, 180°. (RoHS)

  • CA-4002 – 37-pin Male D-sub connector with plastic cover.

  • DN-37 – I/O connector block with DIN rail mounting and 37-PIN D-SUB connector on it.

  • DB-16P – 16-channel isolated digital input board

  • DB-16R – 16-channel relay output board

  • ADP-20/PCI – 20-pin connector extender
