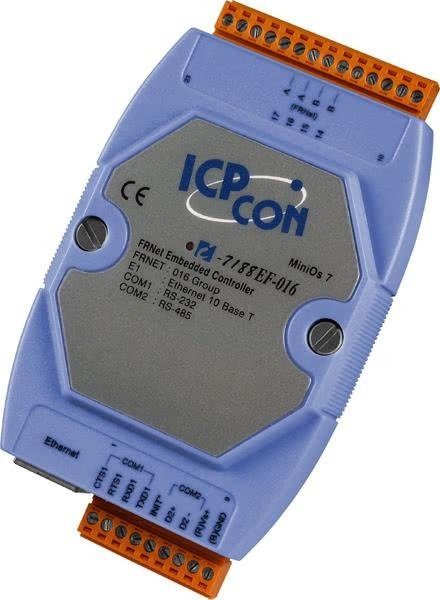

I-7188EF-016

  • Programowalny kontroler z procesorem 80188/40 MHz, 512 KB RAM, 512 KB FLASH, 2 KB EEPROM, RTC i sprzętowym numerem seryjnym, 1 x 10 Base-T LAN, 1 x RS-232, 1 x RS-485 i 1x FRnet; system MiniOS7
  • I-7188EF-016
Features
  • Supports FRnet & TCP/IP (TCP, UDP, IP, ICMP, ARP) networks
  • Re-loadable OS, software, application programs
  • Remote Configuration / Maintenance
  • Diagnostics
  • 64-bit hardware unique serial number inside
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Built-in self-tuner ASIC controller on RS-485 port
  • Program download port: COM1 or Ethernet Port
Specifications
  • CPU

    • CPU: 80188, 40 MHz or compatible
    • SRAM: 512 K bytes
    • Flash Memory: 512 K bytes;
      Erase unit is one sector (64Kb), 100,000 erase/write cycles
    • EEPROM: 2 K Bytes (8 blocks, each block contains 256 bytes);
      Data retention > 100 years; 1,000,000 erase/write cycle
    • NVRAM: 31 Bytes (battery backup, data valid up to 10 year)
    • RTC (Real Time Clock): Yes; Displays seconds, minutes, hours, date of the month, month and year from 1980 to 2079
    • 64-bit Hardware Serial Number: Yes
    • Built-in Watchdog Timer: Yes (0.8 seconds)

  • Communication Interface

    • COM1: RS-232 (CTS, RTS, RXD, TXD, GND); Non-isolation, download port
    • COM2: RS-485 (D2+, D2-); self-tuner ASIC inside; Non-isolation
    • Ethernet Port: 10 BASE-T, RJ-45 port, NE2000 compatible Ethernet Controller
    • FRnet Port:
      • Communication speed : 250 Kbps
      • Scan time : 128 input / 128 output points @ 2.88 mS
      • Communication distance : Max. 400 m
      • Cable: CPEV 0.9 (2P Twisted-pair wire)
      • Distributed I/O modules:
      – Max. 8 SA modules, FR-2053T (16 DI)
      – Max. 8 RA modules, FR-2057T (16 DO)
      • Each module of FR-2053T/FR-2057T module is one group.

  • COM Port Formats

    • Baud rate: 115200 bps max.
    • Data bit: 7, 8
    • Parity: Even, Odd, None
    • Stop bit: 1

  • LED Display

    • 5-Digit 7 Segment LED Display: ---
    • System LED Indicator: Yes

  • Mechanical

    • Dimensions (W x H x D): 123 x 72 x 33 mm
    • Installation: DIN-Rail, Stack Mounting

  • Operating Environment

    • Operating Temperature: -25 ~ +75°C
    • Storage Temperature: -40 ~ +80°C
    • Humidity:
      Operating: 10 ~ 90% RH, non-condensing
      Storage: 5 ~ 95% RH, non-condensing

  • Power

    • Protection: Power reverse polarity protection
    • Required Supply Voltage: +10 ~ +30 Vdc (non-regulated)
    • Power consumption: 2 W
Ordering Information
  • I-7188EF-016 CR – 10M Ethernet FRnet palm-size PAC, 80188-40 CPU, MiniOS7, 512K SRAM (RoHS)
