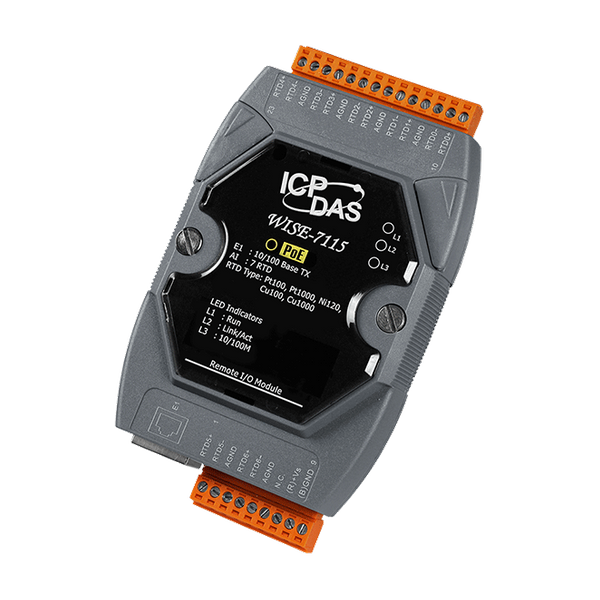

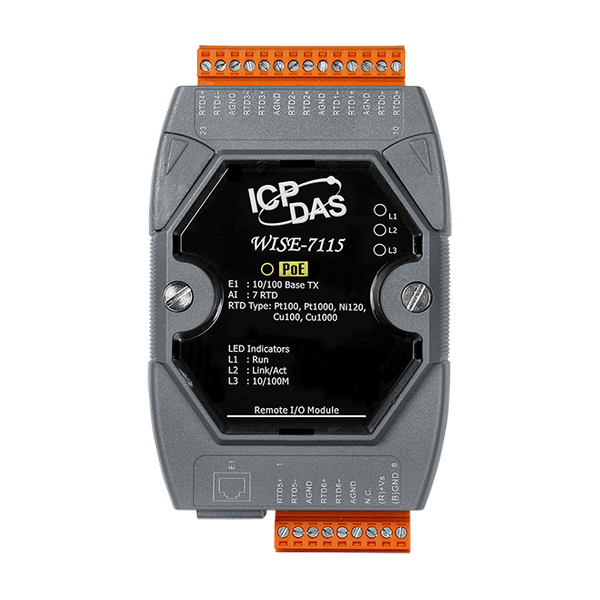

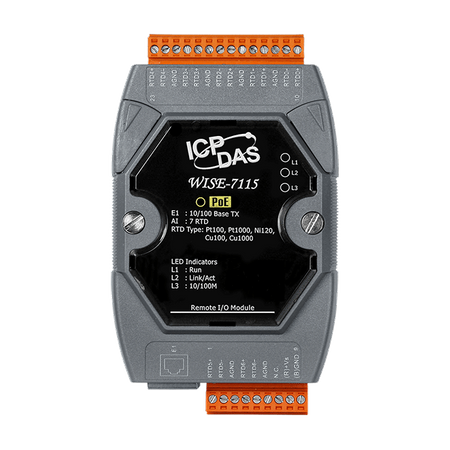

WISE-7115

  • Moduł WISE PoE – 7 wejść analogowych 16-bitowych dla termometrów oporowych z eliminacją rezystancji doprowadzeń
  • WISE-7115
Features
  • Built-in Web Server for IF-THEN-ELSE rule setting
  • Built-in IF-THEN-ELSE rule enigne for logic operation
  • No more programming. Just click and get done!
  • Support IO, Counter, Timer, Email operations
  • Modbus/TCP Protocol for SCADA Software Seamless Integration
  • IEEE 802.3af-compliant Power over Ethernet (PoE)
  • 10/100 Base-TX Ethernet
  • AI Type: 7 RTD (Pt100, Pt1000, Ni120, Cu100, Cu1000)
  • Individual Channel Configuration
  • 3-wire RTD Input with Lead Resistance Elimination
  • 2-way Isolation/ESD Protection
Hardware Specifications
  • Analog Input

    • Input Channels: 7
    • Input Type: RTD
    • Wire Connection: 2/3 wire
    • RTD Type: Pt100, Pt1000, Ni120, Cu100, Cu1000
    • Resolution: 16-bit
    • Sampling Rate: 12 Samples/Sec. (Total)
    • Accuracy: +/-0.05%
    • Bandwidth: 15.7 Hz
    • Zero Drift: +/-0.5 μV/°C
    • Span Drift: +/-20 μV/°C
    • Common Mode Rejection: 150 dB
    • Normal Mode Rejection: 100 dB
    • Open Wire Detection: Yes
    • Individual Channel Configurable: Yes
    • 3-wire RTD Lead Resistance Elimination: Yes
    • ESD Protection:
      +/-4 kV (Contact for each channel)
      +/-8 kV air for random point
    • EFT Protection: +/-4 kV for Power

  • System

    • CPU: 16-bit CPU
    • SRAM: 512 KB
    • Flash Memory: 512 KB
    • EEPROM: 16 KB
    • Dual Watchdog: Yes

  • Communication

    • PoE Ethernet Port: 10/100 Base-TX (With Link, Activity LED Indicator) and automatic MDI/MDI-X

  • 2-way Isolation

    • Ethernet: 1500 Vdc
    • AI: 2500 Vrms

  • LED Indicators

    • PoE: PoE On
    • L1: Run
    • L2: Link/Act
    • L3: 10/100 M

  • Power Requirements

    • IEEE 802.3af: Class 1
    • Required Supply Voltage:
      Powered by Power over Ethernet (PoE) or
      auxiliary power +12 ~ +48 Vdc (non-regulated)
    • LED Indicator: Yes
    • Power Consumption: 0.12 A @ 24 Vdc Max.

  • Mechanical

    • Dimensions (W x H x D): 72 x 123 x 35 mm
    • Installation: DIN-Rail or Wall mounting

  • Environment

    • Operating Temperature: -25 ~ +75 °C
    • Storage Temperature: -30 ~ +80 °C
    • Humidity: 5 ~ 90% RH, non-condensing
Software Specifications
  • Functions

    • Rule Configuration Website: Access Web server on WISE controllers to edit and upload logic rules through web browser.
    • 36 IF-THEN-ELSE Logic Rules:
      3 IF conditions with AND or OR operators
      3 THEN actions
      3 ELSE actions
    • 48 Internal Registers: Hold temporary variables and read/write data via Modbus/TCP address.
    • 12 Timers: Delay / Timing functions.
    • 12 Emails: Send Email messages to pre-set Email receivers.
    • 12 CGI Commands: Send pre-set CGI commands.
    • 12 Recipes: Set up THEN/ELSE action groups.
    • 8 P2P remote modules: Set up the connection information for the remote WISE modules.
    • Modbus/TCP Protocol: Real time control and monitoring I/O channels and system status of controllers via SCADA software.

  • IF Conditions

    • AI Channel: =, >, <, >=, <=(value)
    • Internal Register: =, >, <, >=, <=(value)
    • Timer: Timeout, Not Timeout
    • P2P: DI, AI, DI counter, DO counter, IR
    • Rule Status: Enable, Disable

  • THEN / ELSE Actions

    • Internal Register: Change the value
    • Timer Start: Stop
    • Email: Send
    • CGI Commands: Send
    • Recipe: Execute
    • P2P: DO(On/Off), AO, IR
    • Rule Status: Enable, Disable
Ordering Information
  • WISE-7115 – 7-channel RTD Input with 3-wire RTD lead resistance elimination PoE Module (RoHS)
