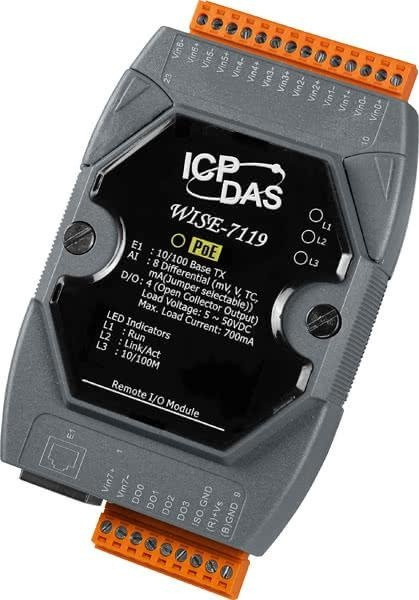

WISE-7119

  • Moduł WISE PoE – 8 wejść analogowych 16-bitowych dla termopar z zab. 240 Vrms oraz 4 izolowane wyjścia cyfrowe
  • WISE-7119
Features
  • Built-in Web Server for IF-THEN-ELSE rule setting
  • Built-in IF-THEN-ELSE rule engine for logic operation
  • No more programming. Just click and get done!
  • Support IO, Counter, Timer, Email operations
  • Modbus/TCP Protocol for SCADA Software Seamless Integration
  • IEEE 802.3af-compliant Power over Ethernet (PoE)
  • 10/100 Base-TX Ethernet
  • Support Current Input, Voltage Input and Thermocouple Input
  • Over Voltage Protection is up to 240 Vrms
  • 4-channel Digital Outputs
  • 2-way Isolation/ESD Protection
Hardware Specifications
  • Analog Input

    • Input Channels: 8 (Differential)
    • Input Type:
      +/-15 mV, +/-50 mV, +/-100 mV, +/-50 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V
      Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
      +/-20mA, 0~20mA, 4~20mA (jumper selectable)
    • Resolution: 16-bit
    • Sampling Rate: 10 samples/Sec. total
    • Accuracy: +/-0.1% or better
    • Bandwidth: 15.7 Hz
    • Zero Drift: +/-10 μV/°C
    • Span Drift: +/-25 ppm/°C
    • Input Impedance:
      Voltage: >1 MΩ
      Current: 125 Ω
    • Common Mode Rejection: 86 dB Min.
    • Normal Mode Rejection: 100 dB
    • Over Voltage Protection: 240 Vrms
    • ESD Protection:
      +/-4 kV (Contact for each channel)
      +/-8 kV air for random point
    • EFT Protection: +/-4 kV for Power

  • Digital Output

    • Output Channels: 4 (Sink)
    • Output Type: Isolated Open Collector
    • Max. Load Current: 700 mA/Channel
    • Load Voltage: 5 ~ 50 Vdc

  • System

    • CPU: 16-bit CPU
    • SRAM: 512 KB
    • Flash Memory: 512 KB
    • EEPROM: 16 KB
    • Dual Watchdog: Yes

  • Communication

    • PoE Ethernet Port: 10/100 Base-TX (With Link, Activity LED Indicator) and automatic MDI/MDI-X

  • 2-way Isolation

    • Ethernet: 1500 Vdc
    • AI and DO: 2500 Vrms

  • LED Indicators

    • PoE: PoE On
    • L1: Run
    • L2: Link/Act
    • L3: 10/100 M

  • Power Requirements

    • IEEE 802.3af: Class 1
    • Required Supply Voltage:
      Powered by Power-Over-Ethernet (PoE) or
      auxiliary power +12 ~ 48 Vdc (non-regulated)
    • LED Indicator: Yes
    • Power Consumption: 0.12 A @ 24 Vdc Max.

  • Mechanical

    • Dimensions(W x L x H ): 123 x 72 x 35 mm
    • Installation: DIN-Rail or Wall mounting

  • Environment

    • Operating Temperature: -25 ~ +75 °C
    • Storage Temperature: -30 ~ +80 °C
    • Relative Humidity: 5 ~ 90% RH, non-condensing
Software Specifications
  • Functions

    • Rule Configuration Website: Access Web server on WISE controllers to edit and upload logic rules through web browser.
    • 36 IF-THEN-ELSE Logic Rules:
      3 IF conditions with AND or OR operators
      3 THEN actions
      3 ELSE actions
    • 48 Internal Registers: Hold temporary variables and read/write data via Modbus/TCP address.
    • 12 Timers: Delay / Timing functions.
    • 12 Emails: Send Email messages to pre-set Email receivers.
    • 12 CGI Commands: Send pre-set CGI commands.
    • 12 Recipes: Set up THEN/ELSE action groups.
    • 8 P2P remote modules: Set up the connection information for the remote WISE modules.
    • Modbus/TCP Protocol: Real time control and monitoring I/O channels and system status of controllers via SCADA software.

  • IF Conditions
    • AI Channel: =, >, <, >=, <=(value)
    • Internal Register: =, >, <, >=, <=(value)
    • DO Counter: =, >, <, >=, <=(value), Change
    • Timer: Timeout, Not Timeout
    • P2P: DI, AI, DI counter, DO counter, IR
    • Rule Status: Enable, Disable

  • THEN / ELSE Actions

    • DO Channel: ON, OFF, Pulse Output
    • Internal Register: Change the value
    • DO Counter: Reset
    • Timer: Start, Stop
    • Email: Send
    • CGI Commands: Send
    • Recipe: Execute
    • P2P: DO(On/Off), AO, IR
    • Rule Status: Enable, Disable
Ordering Information
  • WISE-7119 – 8-channel Universal Input with High Voltage Protection and 4-channel Isolated Output PoE Module (RoHS)
