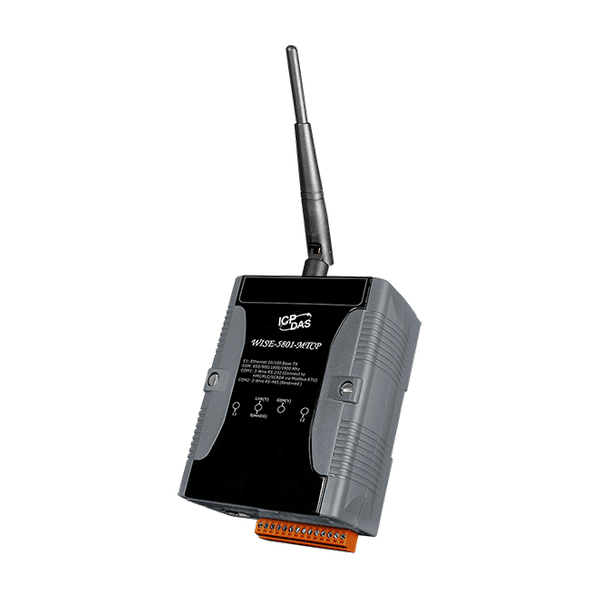

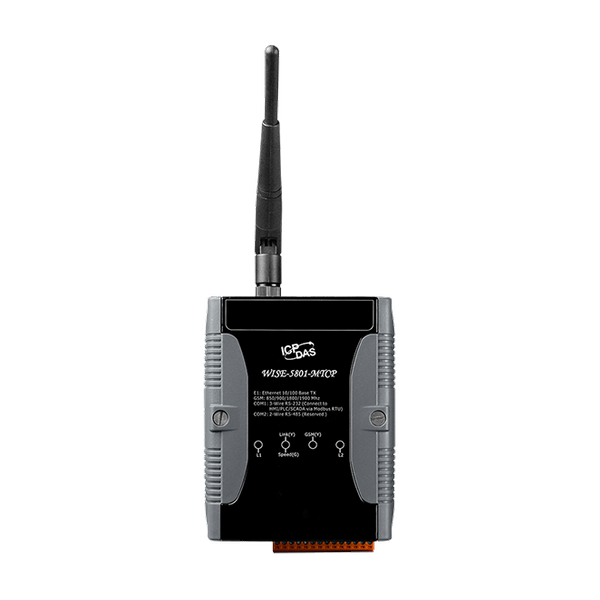

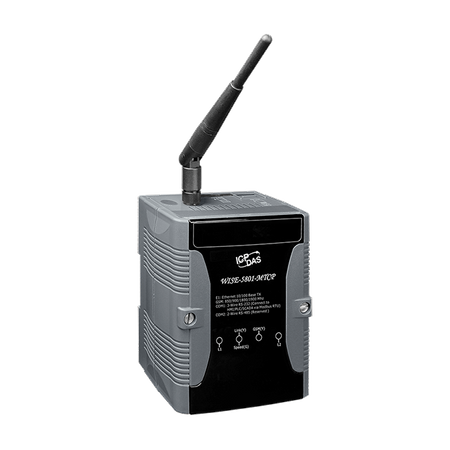

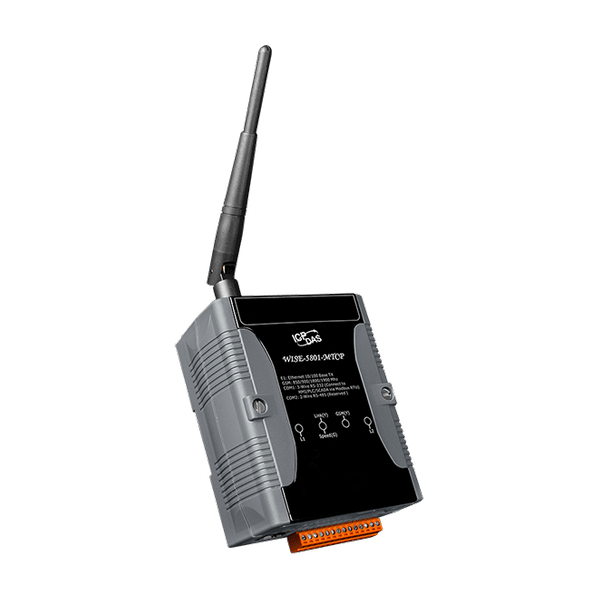

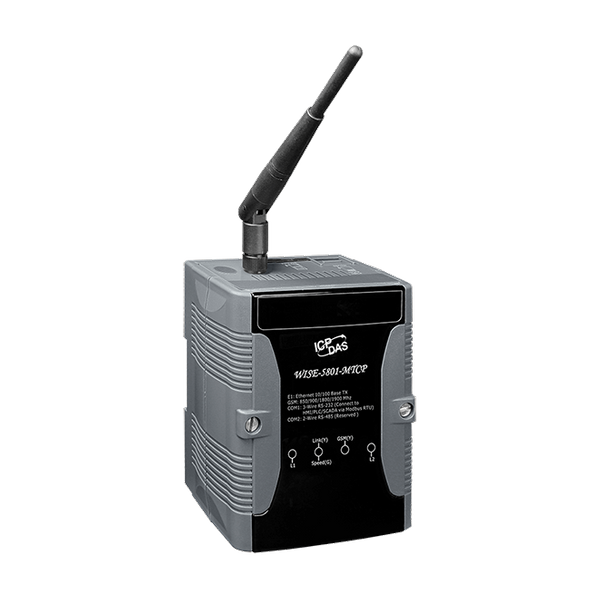

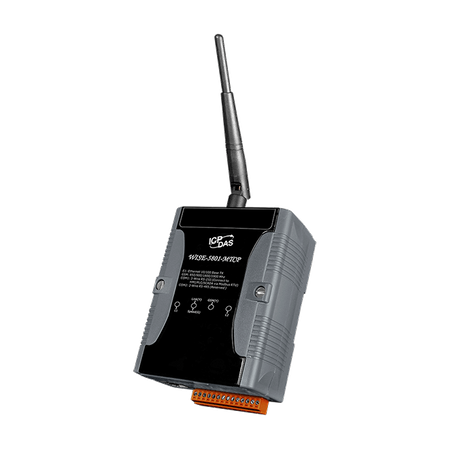

WISE-5801-MTCP

  • Moduł rejestracji danych i definiowanych przez użytkownika wejść-wyjść z interfejsami: 1x 10/100 Base-TX Ethernet, 1x RS-232, 1x RS-485. Programowanie z wykorzystaniem reguł IF-THEN-ELSE. Obsługa protokołu Modbus TCP/RTU. Wysyłanie SMS-ów.
  • WISE-5801-MTCP
  • WISE-5801-MTCP
  • WISE-5801-MTCP
  • WISE-5801-MTCP

WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development. WISE-5801-MTCP supports an I/O expansion bus to implement various I/O functions such as D/I, D/O, A/D and D/A according to the XW-Board. In addition, it also support Modbus TCP slave devices. Based on the connection ability with Modbus TCP slave devices, WISE-5801-MTCP can provide user more flexibility in application field. WISE-5801-MTCP supports Modbus TCP/RTU protocol to make seamless integration with SCADA software available. It also features SMS sending function for alarm report and SMS command receiving function. In addition, WISE-5801-MTCP provide data logger function with microSD card, it can record I/O channel value by event trigger or regular time period. The data files can be sent back to the control center for further administration management or data analysis by Email or FTP.

Parametry techniczne:
Protokół:
Modbus TCP &
,
Modbus RTU
,
FTP Client
,
CGI Command (Sending)
,
Active I/O (Modbus TCP Master)
Function:
Web Interface for Configuration
,
IF-THEN-ELSE Logic operation (36 rule set supported)
,
I/O channel monitoring and control
,
Timer operation (12 set supported)
,
Schedule operation (12 set supported)
,
Data Logger operation (1 set supported)
,
Internal Register operation (48 set supported)
,
Recipe operation (12 set supported)
,
non-SSL Email sending function. SMS message sending function.
,
SNTP Time Synchronization
CPU:
16-bit CPU (80 MHz)
Storage Expansion:
Support 1G/2G/4G/8G/16G/32G microSD card
Status:
1x System Status
,
1x MicroSD Card Status
,
1x Enthernet Link Status
Frequency Band:
Quad-band 850/900/1800/1900 MHz
SMS Mode:
Text and Unicode mode
I/O Type:
XW-board
Remote Module Support:
Modbus TCP Slave Module
Porty:
COM 1: RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max.
,
COM 2: RS-485 (Data+, Data-) with internal self-tuner ASIC
,
non-isolated, Speed: 115200 bps max. (Reserved)
,
RJ-45x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Ochrona przed odwrotną polaryzacją:
Yes
Input Range:
12 ~ 48 VDC
Redundant Power Inputs:
Yes
Konsumpcja:
Idle: 2.0 W
,
Data Link: 150 ~ 400 mA (peak) @ 24 VDC
Wymiary (mm):
91 × 123 × 52 (Wx Hx D)
Installation:
DIN-Rail Mounting
Temperatura pracy:
-25 ~ +75 °C
Temperatura przechowywania:
-30 ~ +80 °C
Wilgotność:
10 ~ 90% RH, Non-condensing
