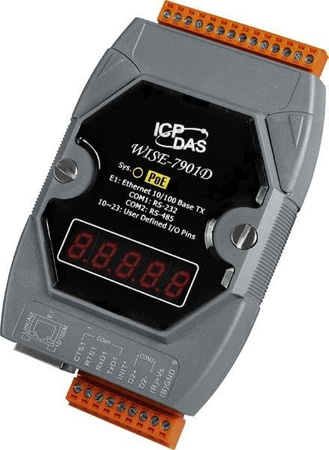

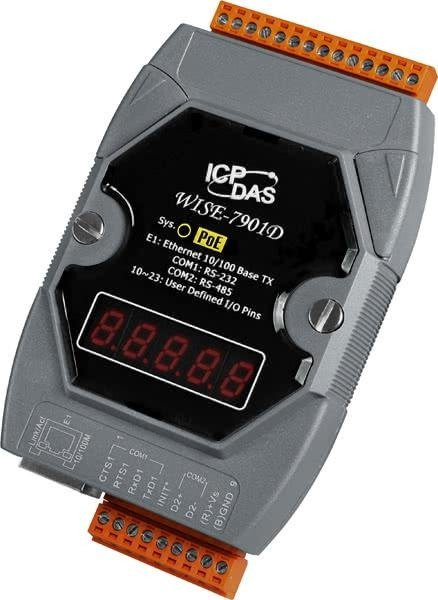

WISE-7901D

  • Sterownik WISE PoE z wyświetlaczem 7-segmentowym, 1 x 10/100M LAN, 1 x RS-232 i 1 x RS-485
  • WISE-7901D
Features
  • Built-in Web Server for IF-THEN-ELSE rule setting
  • Built-in IF-THEN-ELSE rule engine for logic operation
  • No more programming. Just click and get done!
  • Support IO, Counter, Timer, Email operations
  • Modbus/TCP Protocol for SCADA Software Seamless Integration
  • IEEE 802.3af-compliant Power over Ethernet (PoE)
  • 10/100 Base-TX Ethernet
  • I/O expansion bus
  • Support DI/DO X-Boards: X107, X109, X110, X111
  • Support Multi-Function X-Boards: X202, X203, X303, X304, X305, X308, X310, X324
Hardware Specifications
  • CPU Module

    • CPU: 16-bit CPU
    • SRAM: 512 KB
    • Flash: 512 KB; Erase unit is one sector (64 K bytes); 100,000 erase/write cycles
    • EEPROM: 16 KB
    • NVRAM: 31 Bytes (battery backup, data valid up to 10 year)
    • OS: MiniOS7
    • RTC (Real Time Clock): RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
    • 64-bit Hardware Serial Number: Yes
    • Watchdog Timers: Yes (0.8 second)

  • Communication Ports

    • Ethernet: RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
    • COM 1: RS-232 (TxD, RxD, RTS, CTS, GND), non-isolated, Speed: 115200 bps max.
    • COM 2: RS-485 (D2+, D2-), self-tuner ASIC inside, non-isolated, Speed: 115200 bps max.

  • LED Indicators

    • System LED: Yes
    • LED Display: 5-digit 7-segment LED display
    • Special Indicator: PoE LED

  • Hardware Expansion

    • I/O Expansion Bus: Yes, 1

  • Mechanical

    • Dimensions (W x H x D): 72 x 123 x 35 mm
    • Installation: DIN-Rail or Wall Mounting

  • Environment

    • Operating Temperature: -25 ~ +75 °C
    • Storage Temperature: -30 ~ +80 °C
    • Ambient Relative Humidity: 10 ~ 90% RH, non-condensing

  • Power

    • Protection: Power reverse polarity protection
    • Frame Ground: Yes (for ESD Protection)
    • Input Range: +12 ~ +48 Vdc
    • Power over Ethernet (PoE): IEEE 802.3af Class 1
    • Power Consumption: 3.0 W
Software Specifications
  • Functions

    • Rule Configuration Website: Access Web server on WISE controllers to edit and upload logic rules through web browser.
    • 36 IF-THEN-ELSE Logic Rules:
      3 IF conditions with AND or OR operators
      3 THEN actions
      3 ELSE actions
    • 48 Internal Registers: Hold temporary variables and read/write data via Modbus/TCP address.
    • 12 Timers: Delay / Timing functions.
    • 12 Schedules: Setup pre-scheduled routine tasks.
    • 12 Emails: Send Email messages to pre-set Email receivers.
    • 12 CGI Commands: Send pre-set CGI commands.
    • 12 Recipes: Set up THEN/ELSE action groups.
    • 8 P2P remote modules: Set up the connection information for the remote WISE modules.
    • Modbus/TCP Protocol: Real time control and monitoring I/O channels and system status of controllers via SCADA software.

  • IF Conditions

    • DI Channel: ON, OFF, ON to OFF, OFF to ON Change
    • AI Channel: =, >, <, >=, <= (value)
    • Internal Register: =, >, <, >=, <= (value)
    • DI Counter: =, >, <, >=, <= (value), Change
    • DO Counter: =, >, <, >=, <= (value), Change
    • Timer: Timeout, Not Timeout
    • Schedule: In Range, Out of Range
    • P2P: DI, AI, DI counter, DO counter, IR
    • Rule Status: Enable, Disable

  • THEN / ELSE Actions

    • DO Channel: ON, OFF, Pulse Output
    • AO Channel: Change the value
    • Internal Register: Change the value
    • DI Counter: Reset
    • DO Counter: Reset
    • Timer: Start, Stop
    • Schedule: Start, Stop
    • Email: Send
    • CGI Commands: Send
    • Recipe: Execute
    • P2P: DO(On/Off), AO, IR
    • Rule Status: Enable, Disable
Ordering Information
  • WISE-7901D – User-defined I/O Expansion PoE Module with LED Display (RoHS)
