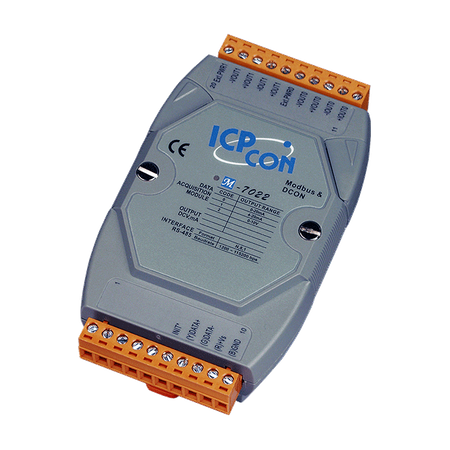

M-7022-G

ICP DAS M-7022-G to moduł 2 wyjść analogowych, 12 bitowych, z izolacją międzykanałową z interfejsem Modbus/RTU. Przystosowany do pracy w rozszerzonym zakresie temperatur: -25 ~ +75°C.

Analog Output

• Output Channels: 2, Channel to channel isolation
• Output Type: 0~20 mA , 4~20 mA and 0~10 V
• Resolution: 12-bit
• Accuracy: +/-0.1% of FSR
• Read Back Accuracy: +/-1% of FSR
• DA Output Response Time: 10 ms per channel
• Zero Drift:
  Current output: +/-0.2uA/°C
  Voltage output: +/-30uV/°C
• Span Temperature Coefficient: +/-25ppm/ °C
• Programmable Output Slope:
  0.125 to 1024 mA/ second
  0.0625 to 512 V/ second
• Current load resistor:
  Internal power: 500 Ω
  External 24V: 1050 Ω
• Intra-module Isolation, Field to Logic: 3000 Vdc

Interface

• Interface: RS-485
• Format: N, 8, 1
• Baud Rate: 1200 ~ 115200 bps

LED Display

• 1 LED as Power/ Communication indicator

Power

• Input: +10 ~ +30 Vdc
• Power Consumption: 3.0 W

Protocol

• Support Modbus and DCON Protocol: Yes

Environment

• Operating temperature: -25 ~ +75°C
• Storage temperature: -40 ~ +85°C
• Humidity: 5 ~ 95% RH, non-condensing
