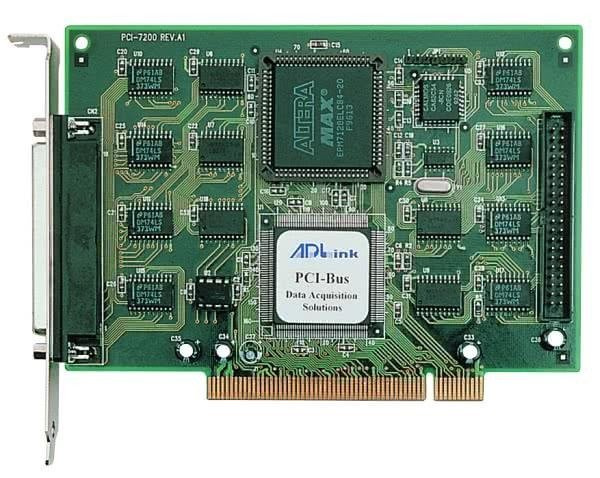

PCI-7200

  • Karta pomiarowa PCI 5V wejść/wyjść cyfrowych - 32 wejścia i 32 wyjścia cyfrowe, 12 MB/sek
  • PCI-7200

Features

  • Support a 32-bit 5 V PCI bus
  • 32-CH TTL digital inputs and 32-CH TTL digital outputs
  • Up to 12 MB/s transfer rate
  • Bus-mastering DMA for both digital inputs and outputs
  • Onboard programmable timer pacer clock
  • Supports handshaking digital I/O transfer mode
  • Multiple programmable interrupt sources
  • 5 V power available on connectors
  • Compact, half-size PCB

Specifications

  • Digital I/O

    • Number of channels:
      32-CH digital inputs
      32-CH digital outputs
    • Compatibility: 5 V/TTL
    • Data transfer rate:
      12 MB/s with external 3 MHz clock, handshaking or external strobe
      8 MB/s with internal 2 MHz timer pacer
    • Digital logic levels:
      Input high voltage: 2-5.25 V
      Input low voltage: 0-0.8 V
      Output high voltage: 2.7 V minimum
      Output low voltage: 0.5 V maximum
    • Output driving capacity:
      Source current: 3.0 mA
      Sink current: 24 mA
    • Data transfers: programmed I/O, interrupt, bus-mastering DMA

  • Programmable Counter

    • Base clock: 4 MHz
    • Timer 0: DI clock source
    • Timer 1: DO clock source
    • Timer 2: Base clock source of timer 0 & 1

  • Interrupt

    • Sources: EO_ACK, EI_REQ, Timer 0, Timer 1 or Timer 2

  • General

    • I/O connector:
      37-pin D-sub female
      40-pin Header
    • Operating temperature: 0˚C to 60˚C
    • Storage temperature: -20˚C to 80˚C
    • Relative humidity: 5% to 95%, non-condensing
    • Power requirements: +5 V 720 mA typical
    • Dimensions (not including connectors): 148 mm x 102 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7200 - 12 MB/s High-Speed 32-CH DI & 32-CH DO Card

Accessories

  • Terminal Boards

    • DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included.)

    • ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector (Cables are not included.)

    • ACLD-9137F-01 - General-Purpose Terminal Board with One 37-pin D-sub Female Connector (Cables are not included.)

  • Cables

    • ACL-10137-1MM - 37-Pin D-Sub M/M cable, 1M (DIN-37D-01, ACLD-9137F-01)

    • ACL-10137-1MF - 37-Pin D-Sub M/F cable, 1M (ACLD-9137-01)
