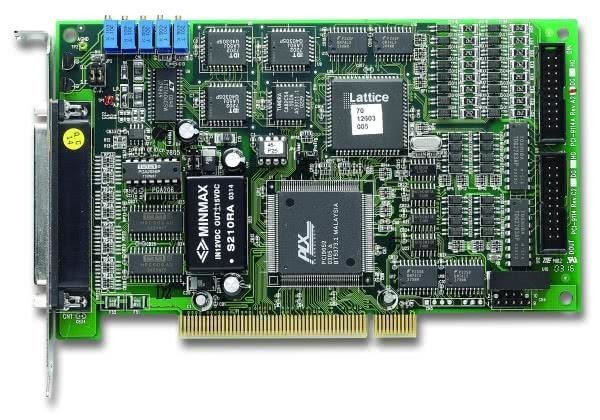

PCI-9114A-DG

  • Karta 5 V PCI - 16/32 wejścia analogowe 16-bitowe 250 kS/sek, 16 izolowanych wejść cyfrowych, 16 izolowanych wyjść cyfrowych i licznik 16-bitowy
  • PCI-9114A-DG

Karta 5 V PCI - 16/32 wejścia analogowe 16-bitowe 250 kS/sek, 16 izolowanych wejść cyfrowych, 16 izolowanych wyjść cyfrowych i licznik 16-bitowy


Features

  • Supports a 32-bit 5 V PCI bus
  • 16-bit A/D resolution
  • Up to 250 kS/s sampling rate
  • 32-CH single-ended or 16-CH differential analog inputs
  • Bipolar or unipolar analog input ranges
  • Onboard 1 k-sample A/D FIFO
  • Programmable gains: x1, x2, x4, x8
  • Automatic analog inputs scanning
  • 16-CH isolated digital inputs and 16-CH isolated digital outputs
  • 2500 Vrms optical isolation for digital inputs and outputs
  • 1-CH 16-bit general-purpose timer/counter
  • +12 V and -12 V power available on the 37-pin D-sub connector
  • Onboard resettable fuses for power output protection
  • Compact, half-size PCB

Specifications

  • Analog Input

    • Number of channels: 32 single-ended or 16 differential
    • Resolution: 16 bits
    • Conversion time: 4 μs
    • Maximum sampling rate: 250 kS/s
    • Gain & Input ranges (software programmable):
      x1 = ±10 V, x2 = ±5 V, x4 = ±2.5 V, x8 = ±1.25 V
    • Gain & Accuracy
      x1 = 0.01 % of FSR ± 1 LSB
      x2, x4 = 0.02 % of FSR ± 1 LSB
      x8 = 0.04 % of FSR ± 1 LSB
    • Input coupling: DC
    • Overvoltage protection: continuous ±35 V
    • Input impedance: 1 GΩ
    • Trigger modes: software, pacer, and external trigger (5 V/TTL compatible)
    • FIFO buffer size: 1 k samples
    • Data transfers: polling, interrupt

  • Isolated Digital Input

    • Number of channels: 16
    • Maximum input range: 24 V, non-polarity
    • Digital logic levels
      0 - 24 V, non-polarity
      Input high voltage: 5 - 24 V
      Input low voltage: 0 - 1.5 V
    • Input resistance: 2.4 KΩ @ 0.5 W
    • Isolation voltage: 2500 Vrms
    • Data transfers: programmed I/O

  • Isolated Digital Output

    • Number of channels: 16
    • Output type: open emitter Darlington transistors
    • Sink current
      350 mA for one channel @ 100% duty
      260 mA for all channels @ 10% duty
    • Power dissipation: Max. 1.47 W per chip (8 DO channels)
    • Supply voltage: 5-35 V
    • Isolation voltage: 2500 Vrms
    • Data transfers: programmed I/O

  • Power Output

    • Output voltage: +12 V and -12 V
    • Resettable fuse protection: 500 mA

  • General-Purpose Timer/Counter

    • Number of channels: 1
    • Resolution: 16 bits
    • Compatibility: 5 V/TTL
    • Base clock available: 2 MHz, external clock to 2MHz

  • General

    • I/O connector:
      37-pin D-sub female
      20-pin ribbon male x 2
    • Operating temperature: 0˚C to 55˚C
    • Storage temperature: -20˚C to 80˚C
    • Relative humidity: 5% to 95 %, non-condensing
    • Power requirements: +5 V 600 mA typical, +12 V 100 mA typical
    • Dimensions (not including connectors): 175 mm x 107 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Drivers Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLABR
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Informations

  • PCI-9114A-DG - 32-CH 16-bit 250 kS/s Normal-Gain Multi-Function DAQ Card

Accessories

  • Terminal Boards

    • DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting

    • ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector

    • DIN-20P-01 - Terminal Board with One 20-pin Ribbon Connector and DIN-Rail Mounting

    • ACLD-9188-01 - General-Purpose Terminal Board with Two 20-pin Ribbon Connectors and One 37-pin D-sub Connector

  • Cable

    • ACL-10137-1MM - 37-pin D-sub M/M cable 1 M (DIN-37D-01)

    • ACL-10137-1MF - 37-pin D-sub M/F cable 1 M (ACLD-9137-01)

    • ACL-10120-1 - 20-pin flat cable 1M (DIN-20P-01, ACLD-9188-01)
