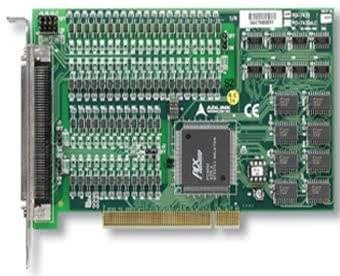

PCI-7433

  • Karta 5 V PCI - 64 izolowane wejścia cyfrowe
  • PCI-7433

Features

  • Supports a 32-bit 5 V PCI bus
  • 64-CH isolated digital inputs
  • Isolation Voltage: 2500 Vrms
  • Isolated input voltage up to 24 V
  • Two external interrupt sources

Specifications

  • Isolated Digital Input

    • Number of channels: 64
    • Maximum input range (Non-polarity): 24 V, non-polarity
    • Digital logic levels: 0 V to 24 V, non-polarity
    • Input high voltage: 5 V to 24 V
    • Input low voltage: 0 V to 1.5 V
    • Input resistance: 2.4 kΩ @ 0.5 W
    • Isolation voltage: 2500 Vrms
    • Interrupt sources: digital input channel 0 & 1
    • Data transfers: programmed I/O

  • General Specifications

    • I/O connector: 100-pin SCSI-II female
    • Operating temperature: 0˚C to 60 ˚C
    • Storage temperature: -20˚C to 80 ˚C
    • Relative humidity: 5% to 95%, non-condensing
    • Power requirements: +5 V 500 mA typical
    • Dimensions (not including connectors): 175 mm x 107 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7433 - 64-CH Isolated DI Card

Accessories

  • Terminal Boards

    • DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)

  • Cable

    • ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787882-9), 1 M
