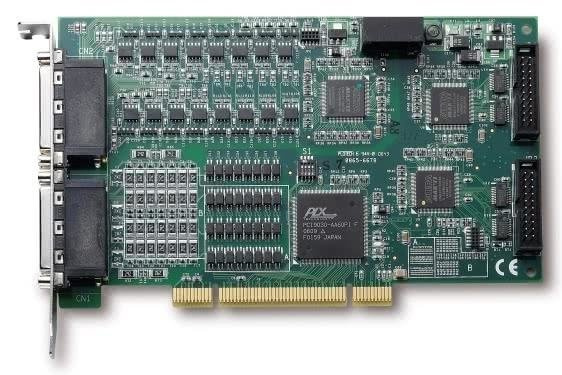

PCI-7442

  • Karta 3.3/5 V PCI - 64 izolowane wejścia i 64 izolowane wyjścia cyfrowe
  • PCI-7442

Features

  • Supports universal 32-bit 3.3 V and 5 V PCI bus, Plug-and-Play
  • High-density, opto-isolated 64-CH digital input and 64-CH digital output
  • 1250 Vrms isolation voltage
  • Programmable Change-of-State (COS) detection for all digital input channels
  • Voltage protection of up to 28 V for isolated input
  • Dry contact input
  • Up to 300 mA high-output driving capability for all output channels
  • 250 mA sink current on isolated output channels
  • Digital output status read back function
  • Digital output value retained after hot system reset
  • Programmable power-up DO initial status
  • Programmable safety DO status functions when WDT interruption occurs
  • Watchdog timer counter prevents system crashes
  • 32-CH programmable TTL I/O function
  • Board ID feature

Specifications

  • Isolated Digital Input

    • Number of channels: 64
    • Maximum input range: 28 V, non-polarity
    • Digital logic levels: 0 V to 28 V, non-polarity
      Input high voltage: 5 V to 28 V
      Input low voltage: 0 V to 1.5 V
    • Input resistance: 4.7 kΩ @ 0.5 W
    • ESD protection CKT switch (forward)
    • Isolation voltage: 1250 Vrms channel-to-system
    • Interrupt sources: 64-channel Change-of-State (COS)
    • Data transfer: programmed I/O

  • Isolated Digital Output

    • Number of channels: 64
    • Output type: open drain Power MOSFET driver
    • Output range: 5 V to 40 V
    • Sink current: 250 mA for all channel @ 100% duty (300 mA max.)
    • Isolation voltage: 1250 Vrms channel-to-system
    • Data transfer: programmed I/O

  • Isolation +5 V Power Supply

    • Output Voltage: +5 V
    • Output Current: 100 mA max. (@ 40˚C)

  • Safety Functions

    • Programmable power-up DO status
    • Watchdog timer
    • Base clock available: 10 MHz, fixed
    • Counter width: 32-bit

  • General Specifications

    • I/O connector: 68-pin Dual port VHDCI female
    • Operating temperature: 0˚C to 60˚C
    • Storage temperature: -20˚C to 80˚C
    • Relative humidity: 5% to 95%, non-condensing
    • Power requirements: +5V 800 mA typical
    • Dimension: 175 mm x 107 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7442 - 64-CH Isolated DI and 64-CH Isolated DO card

Accessories

  • Terminal Boards

    • DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)

  • Cable

    • ACL-10568D - Dual-68-Pin Head to Two 68-Pin SCSI-VHDCI Cable

    • ACL-10568F - 68-Pin SCSI-VHDCI Flat Cable
