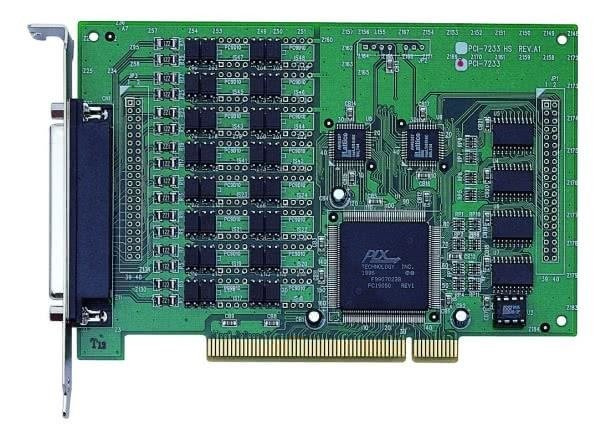

PCI-7233

Features

• Support a 32-bit 5 V PCI bus
• 32-CH isolated digital inputs
• 5000 Vrms optical isolation
• Change-of-state interrupt sources

Specifications

• Isolated Digital Input


• Number of channels: 32
• Maximum input range: 24 V, non-polarity
• Digital logic levels: 0-24 V, non-polarity
  Input high voltage: 5-24 V
  Input low voltage: 0-1.5 V
• Input resistance: 1.2 k @ 0.5 W
• Isolation voltage: 5000 Vrms
• Interrupt sources: Change-of-state
• Data transfers: programmed I/O


• General Specifications


• I/O connector: 37-pin D-sub female
• Operating temperature: 0°C to 60 °C
• Storage temperature: -20°C to 80 °C
• Relative humidity: 5% to 95%, non-condensing
• Power requirements: +5 V @ 300 mA typical
• Dimensions (not including connectors): 158 mm X 107 mm

Software Support

• Operating Systems


• Windows 7/Vista/XP/2000/2003 Server
• Linux
• Windows CE (call for availability)


• Recommended Software


• AD-Logger
• VB.NET/VC.NET/VB/VC++/BCB/Delphi
• DAQBench


• Driver Support


• DAQPilot for Windows
• DAQPilot for LabVIEW
• DAQ-MTLB for MATLAB
• PCIS-DASK for Windows
• PCIS-DASK/X for Linux

Ordering Information

• PCI-7233 - 32-CH Isolated DI Card with inversed input logic

Accessories

• Terminal Boards


• DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included)


• ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector


• Cable


• ACL-10137-1MM - 37-pin D-sub M/M cable, 1 M (DIN-37D-01)


• ACL-10137-1MF - 37-pin D-sub M/F cable, 1 M (ACLD-9137-01)
