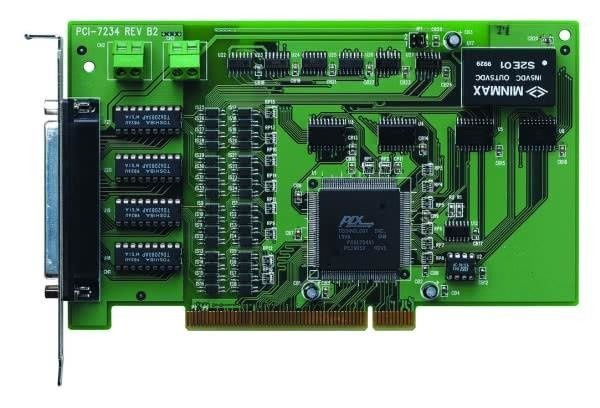

PCI-7234P

  • Karta 5 V PCI - 32 izolowane wyjścia cyfrowe (source current)
  • PCI-7234P

Features

  • Support a 32-bit 5 V PCI bus
  • 32-CH isolated digital outputs
  • 2500 Vrms optical isolation

Specifications

  • Isolated Digital Output

    • Number of channels: 32
    • Output type: Darlington transistor
    • Source current:
      500 mA for one channel @100% duty cycle
      260 mA for all channels @10% duty cycle
    • Power dissipation: Max. 2.25 W per chip (8 DO channels)
    • Supply voltage: 5-35 Vdc
    • Isolation voltage: 2500 Vrms
    • Data transfers: programmed I/O

  • General Specifications

    • I/O connector: 37-pin D-sub female
    • Operating temperature: 0°C to 60 °C
    • Storage temperature: -20°C to 80 °C
    • Relative humidity: 5% to 95%, non-condensing
    • Power requirements: +5 V @ 150 mA typical
    • Dimensions (not including connectors): 175 mm X 107 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux
    • Windows CE (call for availability)

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7234P - 32-CH Isolated DO Card with Source Current Transistor

Accessories

  • Terminal Boards

    • DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting (Cables are not included)

    • ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector

  • Cable

    • ACL-10137-1MM - 37-pin D-sub M/M cable, 1 M (DIN-37D-01)

    • ACL-10137-1MF - 37-pin D-sub M/F cable, 1 M (ACLD-9137-01)
