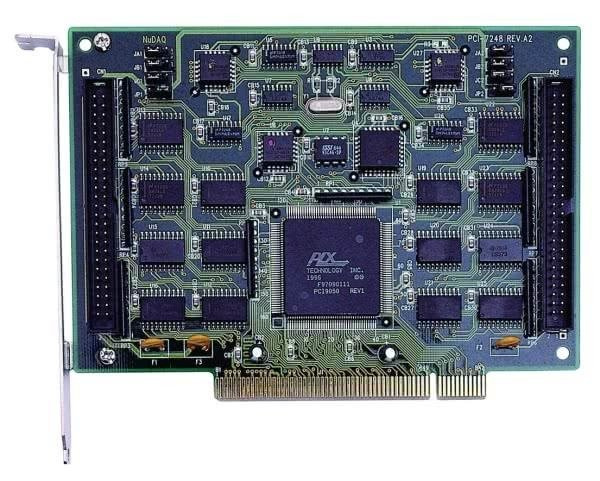

PCI-7248

  • Karta 5 V PCI - 48 wejść-wyjść cyfrowych kompatybilnych z Opto-22
  • PCI-7248

Features

  • Supports a 32-bit 5 V PCI bus
  • 48-CH digital TTL/DTL inputs/outputs
  • Emulates 2 industry standard 8255 PPI (mode 0)
  • Direct interface with OPTO-22 compatible I/O modules
  • Output status read back
  • Onboard 8254 timer/counter chip
  • One 32-bit timer for timed interrupt generation
  • One 16-bit event counter to generate event interrupt
  • Programmable interrupt sources
  • +12 V and +5 V power available on OPTO-22 connectors
  • Onboard resettable fuses for power output protection
  • Compact, half-size PCB

Specifications

  • Digital I/O

    • Number of channels: 48 inputs/outputs
    • Compatibility: 5 V/TTL
    • Digital logic levels:
      Input high voltage: 2-5.25 V
      Input low voltage: 0-0.8 V
      Output high voltage: 2.4 V minimum
      Output low voltage: 0.5 V maximum
    • Output driving capacity:
      Source current:
      2.6 mA for port A & B, and 15 mA for port C
      Sink current: 24 mA
    • Data transfers: programmed I/O

  • General Specifications

    • I/O connector: 50-pin ribbon male x 2
    • Operating temperature: 0ºC to 60ºC
    • Storage temperature: -20ºC to 80ºC
    • Relative humidity: 5% to 95%, non-condensing
    • Power requirements: 500 mA @ 5 Vdc Typical
    • Dimensions (not including connectors): 148 mm x 102 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7248 - 48-CH Opto-22 Compatible DIO Card

Accessories

  • Terminal Boards

    • TB-24R-01 - Terminal Board with 24-CH Relay Outputs (Cables are not included)

    • TB-24P-01 - Terminal Board with 24-CH Isolated Digital Inputs (Cables are not included)

    • TB-16P8R-01 - Terminal Board with 16-CH Isolated DI & 8-CH Relay Outputs (Cables are not included)

    • DIN-24R-01 - Terminal Board with 24-CH Relay Outputs (Cables are not included)

    • DIN-24P-01 - Terminal Board with 24-CH Isolated Digital Inputs and DIN-Rail Mounting (Cables are not included)

  • Cable

    • ACL-10150 - 50-pin flat cable
