PCI-7260

  • Karta 3.3/5 V PCI - 8 izolowanych wejść cyfrowych i 8 wyjść przekaźników mocy

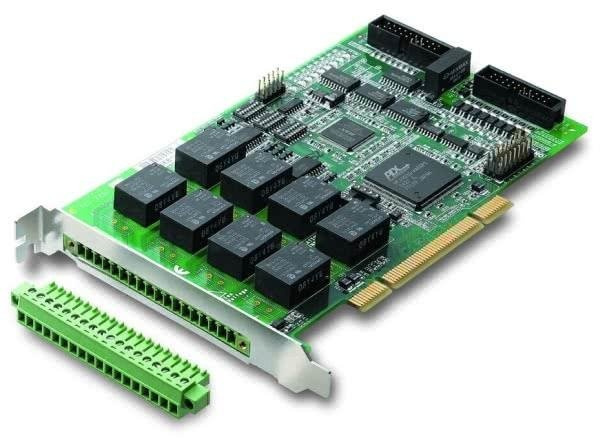

  • PCI-7260

Features

  • Supports a 32-bit 3.3 V or 5 V PCI bus
  • 8-CH high power relay outputs
  • 5 A at 250 VAC
  • 5 A at 30 VDC
  • 8-CH isolated digital inputs
  • 8-CH relay status outputs
  • 1-CH emergency shutdown input
  • Pluggable connector for high current input
  • Onboard LED indicators for relay status
  • Initial and safety state setting by DIP switches
  • Interrupt generated from:
    COS (Change-of-State) of DI
    CH0/CH1 rising edge
  • Built-in watchdog timer

Specifications

  • Relay Output

    • Number of channels: 8
    • Relay type: Non-latching SPST-NO + SPST-NC (for output indicator)
    • Contact rating:
      AC: 250 V @ 5 A
      DC: 30 V @ 5 A
    • Insulation resistance: 1000 MΩ min. (at 500 Vdc)
    • Breakdown voltage: 2000 VAC, 50/60 Hz for 1 minute
    • Contact resistance: 30 mΩ max
    • Operate time: 10 ms max.
    • Release time: 10 ms max.
    • LED indicators: onboard LEDs for relay status
    • Expected relay life: > 10^5 operations @ 5 A, 250 Vac/30 Vdc
    • Data transfer: programmed I/O

  • Isolated Digital Input

    • Number of channels: 8
    • Input current:
      Rated current: 10 mA
      Max current: 50 mA, for isolated input.
    • Input voltage: Up to 24 Vdc
      Input high voltage: 10-24 V
      Input low voltage: 0-2 V
    • Input resistance: 4.7 KΩ @ 0.5 W
    • Input mode: AC-filter/ Non-AC-filter
    • Isolation voltage: 2,500 Vrms channel-to-system
    • Interrupt sources:
      Change-of-state (COS)
      CH0/CH1 rising edge
    • Data transfer: programmed I/O

  • Isolation +5 V Power Supply

    • Output Voltage: +5 V
    • Output Current: 170 mA max. (@ 40˚C)

  • Relay Status Output

    • Number of channels: 8
    • Driving capacity: 15 mA

  • General Specifications

    • I/O connector:
      18-pin pluggable terminal block connector
      20-pin ribbon male x2
    • Operating temperature: 0˚C to 60˚C
    • Storage temperature: -20˚C to 70˚C
    • Relative humidity: 35% to 85%, non-condensing
    • Power requirements: +5 V 510 mA typical
      990 mA typical (when all relays are activated simultaneously
    • Dimensions (not including connectors): 175 mm x 107 mm

  • Certificate

    • EMC/EMI: CE, FCC Class A
    • Safety: EN61010: 2001

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux
    • Windows CE (call for availability)

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7260 - 8-CH High-Power Relay Outputs & 8-CH Isolated Digital Inputs Card

Accessories

  • ACL-10337 - Two 20-Pin Header to 37-Pin D-Sub PC Back Panel (for JP2/JP3)
