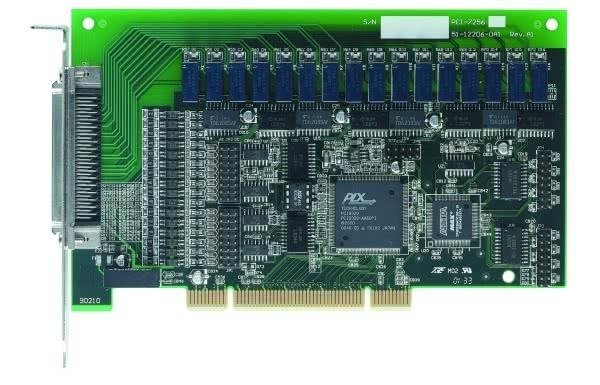

PCI-7256

  • Karta 3.3/5 V PCI - 16 izolowanych wejść cyfrowych i 16 wyjść przekaźników blokujących
  • PCI-7256

Features

  • Supports a 32-bit 3.3 V or 5 V PCI bus
  • 16-CH latching SPDT relays
  • Latching relays
  • Power saving on relay actuation
  • Output status unchanged when power-off
  • Onboard LED indicators for relay status
  • Relay output status read back
  • Onboard relay driving circuits
  • Onboard connectors for external LED connection
  • 16-CH isolated digital inputs
  • 2500 Vrms optical isolation for digital inputs
  • Change-of-state (COS) interrupt
  • Onboard low-pass filtering for digital inputs
  • Two external interrupt sources
  • Onboard isolated +5 V power for dry contact inputs
  • Compact, half-size PCB
  • Board ID

Specifications

  • Relay Output

    • Number of channels: 16
    • Relay type: Latching SPDT (Form C), latching
    • The output status will keep unchanged when power-off
    • Isolation voltage: 1500 Vrms
    • Contact rating:
      AC: 125 V @ 0.5 A
      DC: 30 V @ 1 A
    • Breakdown voltage: 1000 Vrms
    • Contact resistance: 60 mΩ
    • Relay ON/OFF time:
      Operate time: 3 ms
      Release time: 3 ms
    • LED indicators:
      Onboard LEDs for relay status
      Onboard connectors for external LED connection
    • Expected relay life:
      >2x10^5 operations @ 1 A, 30 Vdc
      >10^5 operations @ 0.5 A, 125 Vac
    • Data transfer: programmed I/O

  • Isolated Digital Input

    • Number of channels: 16
    • Maximum input range: 24 V, non-polarity
    • Digital logic levels: 0-24 V, non-polarity
      Input high voltage: 10-24 V
      Input low voltage: 0-2 V
    • Input resistance: 4.7 kΩ @ 0.5 W
    • Isolation voltage: 2500 Vrms channel-to-system
    • Interrupt sources:
      Change-of-state interrupt, digital input channel 0 and 1
    • Data transfer: programmed I/O

  • Isolated Power Supply

    • Output voltage: +5 V
    • Output current: 170 mA max @ 40˚C

  • General Specifications

    • I/O connector: 68-pin SCSI-II female
    • Operating temperature: 0˚C to 60˚C
    • Storage temperature: -20˚C to 80˚C
    • Relative humidity: 5% to 95%, non-condensing
    • Power requirements:+5 V 340 mA typical
      980 mA max. (when all relays are activated simultaneously)
    • Dimensions (not including connectors): 175 mm x 107 mm

Software Support

  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server
    • Linux

  • Recommended Software

    • AD-Logger
    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • DAQPilot for Windows
    • DAQPilot for LabVIEW
    • DAQ-MTLB for MATLAB
    • PCIS-DASK for Windows
    • PCIS-DASK/X for Linux

Ordering Information

  • PCI-7256 - 16-CH Latching Relay Outputs & 16-CH Isolated DI Card

Accessories

  • Terminal Boards

    • DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)

  • Cables

    • ACL-10569-1 -68-pin SCSI-II cable (mating with AMP-787082-7), 1 M
