Features
- Supports a 32-bit 3.3 V or 5 V PCI bus
- 32-CH long-life PhotoMos relay outputs
- Relay output status read back
- 1500 Vrms optical isolation for relay outputs
- Onboard LED indicators for relay status
- Onboard connectors for external LED connection
- Onboard relay driving circuits
- 2-CH isolated digital inputs
- Two external interrupt sources
- 2500 VRMS optical isolation for digital inputs
- Compact, half-size PCB
- Board ID
Specifications
- Relay Output
- Number of channels: 32
- Relay type: PhotoMos SPST (Form A)
- Load voltage (peak AC): 350 V
- Continuous load current: 0.12 A
- Peak load current: 0.3 A
- Maximum switching power: 300 mW
- Isolation voltage: 1500 Vrms
- Output turn-on resistance: 17 Ω typical
- Output off-state leakage current: 1 μA maximum
- Turn-on time: 0.23 ms typical
- Turn-off time: 0.04 ms typical
- Data transfers: programmed I/O
- Isolated Digital Input
- Number of channels: 2
- Maximum input range: 24 V, non-polarity
- Digital logic levels: 0-24 V, non-polarity
Input high voltage: 5-24 V
Input low voltage: 0-1.5 V - Input resistance: 2.4 kΩ @ 0.5 W
- Isolation voltage: 2500 Vrms
- Interrupt sources: digital input channel 0 and 1
- Data transfers: programmed I/O
- General Specification
- I/O connector: 68-pin SCSI-II female
- Operating temperature: 0˚C to 60˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: +5 V 380 mA max.
- Dimensions (not including connectors): 175 mm x 107 mm
Software Support
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux
Ordering Information

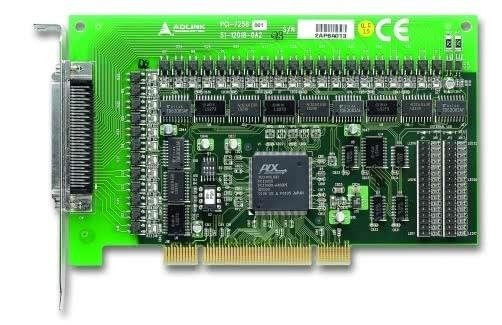

- PCI-7258 - 32-CH PhotoMos Relay Outputs & 2-CH Isolated DI Card
Accessories
- Terminal Boards
- DIN-68S-01 - Terminal Board with One 68-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)
- Cables
- ACL-10569-1 -68-pin SCSI-II cable (mating with AMP-787082-7), 1 M
