Features
- AT-Bus
- 16-bit high resolution analog input
- 16 single-ended or 8 differential analog input channels
- Bipolar input signals
- Programmable gain of x1, x2, x4, x8
- On-chip sample & hold
- Two 12-bit monolithic multiplying analog output channels
- 16 digital output channels
- 16 digital input channels
- 3 independent programmable 16-bit down counters
- Programmable sampling rate of up to 100 kHz
- Three A/D trigger modes: software trigger, programmable pacer trigger, and external pulse trigger
- AT interrupt IRQ capability: 9 IRQ levels (IRQ3~IRQ15) are jumper selectable
- Integral DC-to-DC converter for stable analog power source
- 37-pin D-type connector
- Compact size: half-size PCB
- Analog Input (A/D)
- Converter: ADS7805 or equivalent, successive approximation type
- Resolution: 16-bit
- Number of channels: 16 single-ended or 8 differential
- Input Range (programmable):
Bipolar : ±10 V, ±5 V, ±2.5 V,±1.25 V - Conversion Time: 8 µsec
- Sampling Rate:
100 kHz maximum for single channel
20 kHz maximum for multi-channels multiplexing - Overvoltage protection: Continuous ± 35V maximum
- Differential Linearity Error: ± 2 LSB
- Accuracy: 0.003%, ± 1 LSB
- Input Impedance: 10 MΩ / 5pF
- AD conversion trigger soruces: Software, Pacer, and External
- Data Transfer: Pooling, Interrupt, DMA
- Analog Output (D/A)
- Converter: DAC7541 or equivalent, monolithic multiplying
- Resolution: 12-bit
- Number of channels: 2 double-buffered analog outputs
- Output Range:
Internal reference: (unipolar) 0~5 V or 0~10 V
External reference: (unipolar) max. +10 V or -10 V - Settling Time: 30 µ sec
- Linearity: ±1/2 bit LSB
- Output driving capability: ±5mA max.
- Digital Input (DI)
- Channel: 16 TTL compatible
- Input Voltage:
Low: Max. 0.8 V
High: Min. +2.0 V - Input Load:
Low: +0.5 V @ -0.2 mA max.
High: +2.7 V @+20 uA max. - Digital Output (DO)
- Channel: 16 TTL compatible
- Output Voltage:
Low: Max. 0.5 V
High: Min. +2.7 V - Driving Capacity:
Low: max. +0.5 V at 8.0 mA (sink)
High: min. 2.7 V at 0.4 mA (source) - Programmable Counter
- Device: 8254
- A/D pacer: 32-bit timer( two 16-bit counter cascaded together) with a 2 MHz clock base
- Counter: One 16-bit counter with an internal 2MHz clock base or external clock
- Pacer Output: 0.00046 Hz ~ 100 kHz
- General Specifications
- I/O Base Address: 16 consecutive address location
- Interrupt IRQ: IRQ3, 5,6,7,9,10,11,12,15
- DMA Channel: CH1 or CH3
- Connector: 37-pin D-type connector
- Operating Temperature: 0° C ~ 55° C
- Storage Temperature: -20° C ~ 80° C
- Humidity: 5 ~ 95%, non-condensing
- Power Consumption: +5 V @ 420 mA maximum, +12 V @ 240 mA maximum
- Dimension: 163 mm (L) X 123 mm (W)

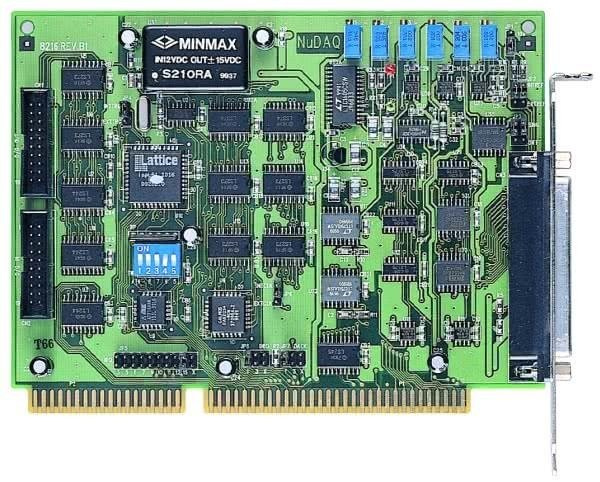

- ACL-8216 - 16-CH 16-Bit 100 kS/s Multi-Function DAQ Card
- Terminal Board
- ACLD-9137-01 - General Purpose Terminal Board with One 37-pin D-sub Connector (matching cable ACL-10137-1MF)
- DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-rail Mounting (matching cable ACL-10137-1MM)
- ACLD-9138-01 - General Purpose Terminal Board with One 37-pin D-sub Connector and blank RC circuits for analog input boards (matching cable ACL-10137-1MM)
- Cable
- ACL-10337 - 2 x 20-pin header to 37-pin D-sub PC back panel flat cable
- ACL-10137-1MF - 37-pin D-sub male/female cable, 1 m
- ACL-10137-1MM - 37-pin D-sub male/male cable, 1 m
