Features
- 16 isolated digital input and output channels
- 16 non-isolated digital input and output channels
- One 8254 chip on board which provide a set of cascaded timers and one independent counter
- Dual interrupt channels, one is for external interrupt and the other is for on board timer interrupt
- Use 37-pin D-type female connector
- AT-Bus and Compact / Half size PCB
- Isolated Digital Input
- Number of channels: 16 channels
- Electricity characteristics: Non-polarity photo-coupler
- Input Voltage: 0 - 24 Vdc or -24 Vdc - 0:
Logic H: 3~24 V or -24~ -3 V
Logic L: 0~2.4 V or -2.4 V~0 - Input Resistance: 1.2 kΩ @ 1W (470 Ω for special version)
- Isolation Voltage: 2,500 Vdc
- Max. Throughput: 10 kHz
- Isolated Digital Output
- Number of channels: 16 channels
- Electricity characteristics: Open collector transistor
- Output Voltage: open collector 5 V (min) to 40 Vdc (max)
- Sink Current:
Max. 500 mA/ch for only one of the TD62003 transistor is ON
347 mA/ch for all of the TD62003 transistors are ON @ 10% duty - Isolation Voltage: 2,500 Vdc
- Max. Throughput: 10 kHz
- Non-isolated Digital Input
- Number of channels: 16 channels
- Input logic:
low voltage: min. -0.5 V; max. 0.8 V
high voltage: min. 2.0 V; max. 5.0 V - Input loading current: max. 0.2 mA at 0.4 V
- Non-isolated Digital Output
- Number of channels: 16 channels
- Input logic low voltage (sink): max. 0.5 V at 24 mA;
- Input logic high voltage (source): max. 0.4 V at 12 mA
- Driving Capacity: All inputs and outputs are TTL/DTL compatible
- Programmable Counter
- Chips: 8254 include 3 counters
- Counter resolution: 16-bit counters ( counter0 ~ counter 2)
- Counter usage:
counter 0 is free for users; counter 1 and counter 2 are cascaded together for timer pacer generation. Base frequency of Counter 2: 2 MHz - Usable pins: CLK and GATE for counter 0 (JP5)
- General Specification
- Bus: ISA bus
- I/O port address: Hex 200 ~ Hex 3F8 (8 bytes)
- Connector:
One DB-37 for Isolated DIO
Two 20-pin flat-cable for TTL DIO - Interrupt IRQ:
IRQ 3,4,5,6,7 for external digital interrupt
IRQ 9,10,11,12,15 for internal timer interrupt - Operating Temperature: 0 ~ 60 °C
- Storage Temperature: -20 ~ 80 °C
- Humidity: 5 to 95% non-condensing
- Power Consumption: 5 V @ 360 mA typical
- Dimension: 163 mm x 123 mm

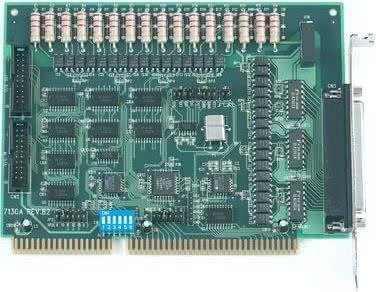

- ACL-7130 - 16-CH Isolated DI & 16-CH Isolated DO Card
