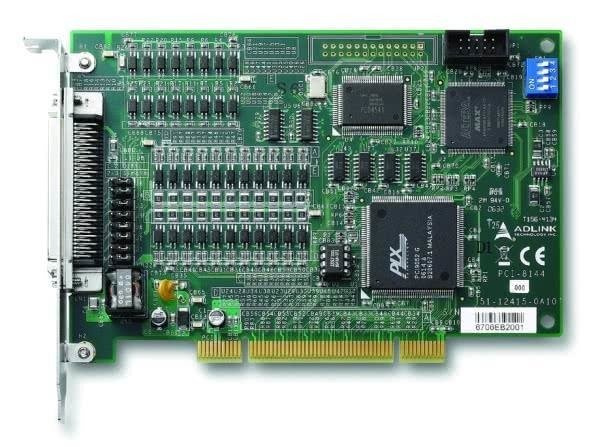

PCI-8144

  • Karta PCI - 4-osiowe sterowanie napędami krokowymi
  • PCI-8144
Features
  • 32-bit PCI bus, Rev. 2.2, 33 MHz
  • Card index switch selection
  • Pulse output rates up 2.4 Mpps for stepper motor control
  • Pulse output options: CW/CCW
  • Speed change on-the-fly
  • 3 home return modes
  • Programmable acceleration and deceleration time
  • Trapezoidal and S-curve velocity profile
  • Simultaneously start/stop with external signal control (STA/STP)
  • Programmable interrupt control
  • Supports up to 12 cards in one system
  • Security protection for user's program
  • General purpose isolated I/O: 8 DI and 8 DO
  • Emergency stop input via STP pin
  • All digital I/O are 2500 VRMS isolated
  • More than 30 thread safe API functions
  • 2-phase stepping motor excitation optional
Specifications
  • Pulse Type Motion Control

    • Number of Axes 4
    • Pulse Output Rate 0.5 pps to 2.4 Mpps
    • Max. Acceleration Rate 737 Mpps2
    • Speed Resolution 16-bit

  • Motion Interface I/O Signals

    • I/O Pin Differential and 2500 VRMS optically isolated
    • End Limit Signal Pin PEL and MEL
    • Slow Down Signal Pin PSD and MSD
    • Home Sensor ORG
    • GPIO 8 DI and 8 DO

  • General Specifications

    • Connector 68-pin SCSI-type connector
    • Operating Temperature 0˚C to +50˚C
    • Storage Temperature -20˚C to +80˚C
    • Humidity 5% to 85%, non-condensing

  • Power Consumption

    • Power Supply (Input) +24 VDC ±5%
    • External Power Supply (Output) +5 VDC ±5%, 100 mA (max.)
Software Support
  • Windows Platform

    • Available for Windows 7/Vista (32-bit)/XP/2000
    • Recommended programming environments: VB/VC++/BCB/Delphi
    • Various sample programs with source code
    • Customized API functions

  • MotionCreatorPro 2

    • MotionCreatorPro 2 is a user-friendly Windows-based application development software package included with all distributed motion and I/O control modules. MotionCreatorPro 2 provides simple configuration and real-time statuses of modules, in addition to precise positioning control with no effort.
Ordering Information
  • PCI-8144 - 4-axis stepper motion control card
Accessories
  • Terminal Board

    • DIN-68S-01 - Terminal board with 68-pin SCSI-II connector with DIN socket

  • Cabling

    • ACL-10569-1 - 68-pin SCSI-II cable (mating with AMP-787082-7), 1 M
