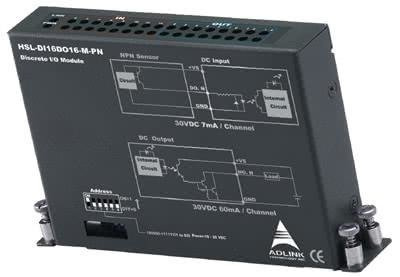

HSL-DI16DO16-M-NN

16-CH Discrete NPN Sinking Input and 16-CH Discrete NPN Sinking Output HSL Module; metal case series

• Slave ID consumption: 1
• 16-CH digital input and 16-CH digital output -NN: for NPN sinking type sensor input or dry contact and NPN sinking type output -
• Photo couple isolation voltage: 2500Vrms
• Input impedance: 4.7KΩ
• Input current: ± 10mA(Max) , ± 12.5mA (Peak)
• Input voltage: ± 40V (Max)
• Output switching capacity: Single channel 500mA; all channels 60mA at 24VDC
• Output response time: ON→OFF: 180µs,OFF→ON: 1.2µs
