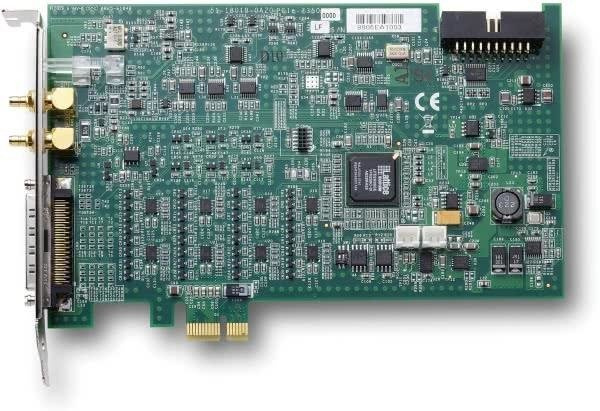

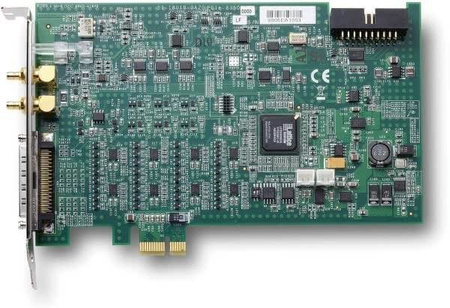

PCIe-7350

  • Karta PCIe x1 - 32 wejścia-wyjścia cyfrowe 200 MB/sek z wyborem kierunku (w grupach po 8 wejść-wyjść) i poziomu logiki (1,8 / 2,5 / 3,3 V) oraz 8 wejść-wyjść interfejsu funkcji aplikacji AFI
  • PCIe-7350
Features
  • x1 lane PCI Express Interface
  • Maximum 50 MHz clock rate from internal timer or 100 MHz from external clock
  • 200 MB/s maximum throughput
  • Software selectable voltage level of 1.8 V, 2.5 V, and 3.3 V
  • 16-steps phase shift in external clock mode
  • Per group (8-bit) input/output direction selectable
  • Supports I2C and SPI programmable serial interfaces for external device communication
  • Scatter-gather DMA support
  • Flexible handshaking and external digital trigger modes
  • 8-channel auxiliary programmable I/O
Specifications
  • Digital I/O

    • Number of channels:
      32, per group (8-channel) input/output direction
      selectable logic levels: 1.8 V, 2.5 V, 3.3 V (software selectable)
    • Power-up status: All digital inputs
    • Impedance:
      Input: 10 kΩ
      Output: 50 Ω
    • Input protection: -1 to 6 V
    • Data transfer: Programmable I/O, bus-mastering, DMA with scatter-gather
    • Maximum data transfer rate: 200 MB/s
    • Digital logic levels:

      • 1.8 V
        DI: VHmin = 1.2 V, VLmax = 0.63 V;
        DO: VHmax = 1.6 V, VL max = 0.2 V, Imax = 8 mA

      • 2.5 V
        DI: VHmin = 1.6 V, VLmax = 0.70 V;
        DO: VHmax = 2.3 V, VL max = 0.2 V, Imax = 16 mA

      • 3.3 V
        DI: VHmin = 2.0 V, VLmax = 0.80 V;
        DO: VHmax = 3.1 V, VL max = 0.2 V, Imax = 32 mA

  • Clocking mode

    • Internal clock: Max. 50 MHz (100 MHz / N; 2
    • External clock: Max. 100 MHz (support 8/16-bit data width only, data throughput must be less than 200 MB/s)
    • Handshaking
    • Burst handshaking

  • Trigger sources

    • Software trigger
    • External digital trigger: AFI[0…7]

  • Trigger modes

    • Post trigger, Retrigger, Pattern match, Handshaking

  • Change of State Interrupt

    • Interrupt sources: Any of 32 channels or a pre-define channel Change-of-State

  • Application Function I/O

    • Number of channels: 8
    • Supporting modes: static I/O, I2C or SPI master node, external clock input/output, external digital trigger input, handshaking
Software Support
  • Operating Systems

    • Windows 7/Vista/XP/2000/2003 Server

  • Recommended Software

    • VB.NET/VC.NET/VB/VC++/BCB/Delphi
    • DAQBench

  • Driver Support

    • PCIS-DASK for Windows
Ordering Information
  • PCIe-7350 - 50 MHz 32-CH High-Speed Digital I/O PCI Express Card
Accessories
  • Terminal Boards

    • DIN-68H-01 - Terminal Board with One 68-pin SCSI-VHDCI Connector and 0 or 50 Ω Jumper Selectable Impedance (cables not included)

  • Cables

    • ACL-10279 - 68-pin SCSI-VHDCI Cable with 50 Ω Impedance (DIN-68H-01)

    • SMB-SMB-1M - SMB to SMB Cable, 1M
