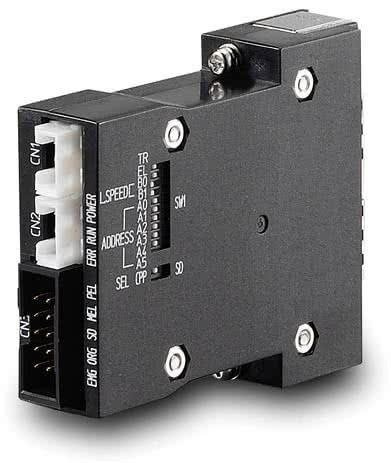

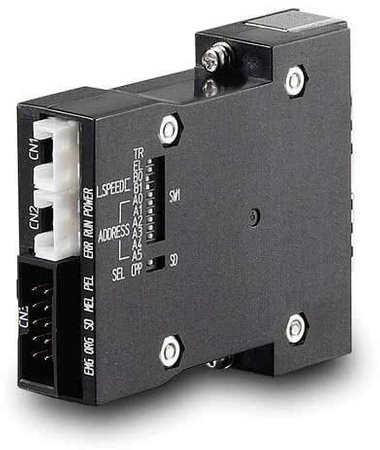

MNET-MIA

  • Moduł Motionnet - 1-osiowe sterowanie napędami Panasonic MINAS A4
  • MNET-MIA
Features
  • No command frequency limitation
  • Up to 64 axes, serially connected
  • No need for terminal boards – reduces space
  • The scanning cycle time up to 0.97 ms at 20 Mbps when 64 axes are connected
  • Point-to-point application can be easily completed with multiple single-axis modules
  • Supports linear/s-curve acceleration and deceleration
Specifications
  • Number of Axes: 1
  • Slave ID Consumption: 1
  • Transmission Speed: 2.5/5/10/20 Mbps
  • Support Motor Name: Panasonic MINAS A4, A5 series
  • Encoder Input Frequency (Max): 6.55 MHz @ 4xAB
  • Pulse Output Rate (Max): 6.55 MHz
  • Motion Features:
    • Linear Interpolation: -
    • Circular Interpolation -
    • Home Return Mode: 13
    • Programmable Acceleration/Deceleration: Yes
  • Motion Profile: T/S curve
  • Dedicated Moiton I/O: Yes
  • Hardware Emergency Input: Yes
  • Position Compare & Trigger: 10 KHz
  • High Speed Trigger: -
  • Path Move: -
  • Power Indicator: Displays the status of the 3.3 Vdc internal control power (red LED)
  • Operating Temperature: 0 ~ +50°C
  • Operating Ambient Humidity: 80% RH or less (non-condensing within the +10 ~ +50°C range)
  • Environmental: RoHS compliant
  • Vibration: JIS C0040 compliant
  • Weight: Approximately 50 g
  • Dimensions (W x H x D): 52.4 x 16.3 x 69.5 mm
Ordering Information
  • MNET-MIA - Motionnet distributed single-axis motion control module for Panasonic MINAS A4



Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.

Gwarancja 24 miesiące - Gwarancja udzielana przez sprzedawcę na okres 24 miesięcy.

Gwarancja standardowa 24 miesiące
