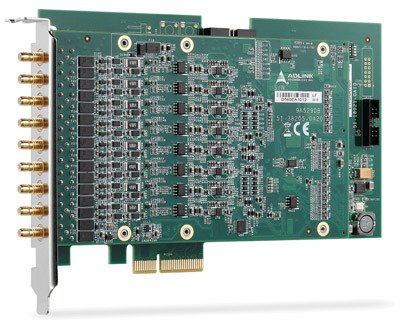

Karta pomiarowa PCIe-9529

  • Karta pomiarowa akwizycji danych DAQ - 8 wejść analogowych 24-bitowych 192 kS/sek z równoczesnym próbkowaniem oraz z prądem podkładu dla IEPE, PCIe x4
  • Karta pomiarowa PCIe-9529

Features

  • 24-Bit Sigma-Delta ADC
  • 8 simultaneous analog inputs
  • 192 kS/s maximum sampling rate
  • ±1 V, and 10 V input ranges
  • 110 dB dynamic range
  • Antialiasing filters
  • AC (0.5 Hz), or DC coupling, software selectable
  • IEPE - 4mA, software configurable

Specifications

    • Analog Input
      • Number of simultaneously sampled channels: 8
      • Input configuration: Differential or pseudo-differential
      • Input impedance:
        • Differential Configuration
        • Between positive input and system ground: 1 MΩ
        • Between negative input and system ground: 1 MΩ
        • Pseudodifferential Configuration
        • Between positive input and system ground: 1 MΩ
        • Between negative input and system ground: 50 Ω
      • Input coupling: AC or DC, software selectable
      • AC coupling cutoff frequency: 0.5 Hz
      • ADC resolution: 24-bit
      • ADC type: Sigma-Delta
      • Sampling rate: 192 kS/s maximum,
        • 8 kS/s to 54 kS/s in 192 μS/s increments,
        • 54 kS/s to 108 kS/s in 576 μS/s increments,
        • 108 kS/s to 192 kS/s in 768 μS/s increments
      • Input signal range: ± 10 V, or ± 1 V
      • Integrated Electronic Piezoelectric (IEPE):
        • Current: 4 mA for each channel
        • IEPE compliance: 24 V
      • Overvoltage protection
        • Differential: ± 42.4 V
        • Pseudo-differential:
        • Positive terminal: ± 42.4V
        • Negative terminal: Not protected, rated at ± 2.5 V
      • Offset error: ±1 mV max
      • Gain error: ±0.5% of FSR
      • Crosstalk: < -100 dB
      • THD: < -104 dB
    • Trigger
      • Trigger Sources:
        • Software trigger
        • Analog trigger
        • External digital trigger
        • SSI
      • Trigger Modes:
        • Post-trigger
        • Delay trigger
      • External Digital Trigger Input:
        • 5 V TTL compatibility
        • Trigger polarity: rising or falling edge
        • Pulse width: 20 ns minimum
    • Timebase
      • Delay trigger timebase
        • PCIe clock (125 MHz)
      • Sample clock timebase
        • Internal: onboard synthesizer (10 MHz)
        • External: SSI
    • Data Storage and Transfer
      • Scatter-Gather DMA data transfer
      • 2048 samples for each channel
    • Onboard Reference
      • +5.000 V onboard reference voltage
      • < 5.0 ppm/°C reference temperature drift
      • 15 minutes recommended warmup
    • General Specifications
      • I/O Connector:
        • SMB x 8 for analog inputs
        • SMB x 1 for external digital input
      • Dimensions (W x H - not including connectors): 167.64 x 106.68 mm
      • Bus Interface: PCI Express Gen 1 x4
      • Ambient Temperature (Operational): 0 ~ +55°C
      • Ambient Temperature (Storage): -20 ~ +80°C
      • Relative Humidity: 10 ~ 90%, non-condensing
    • Certifications
    • EMC/EMI: CE, FCC Class A

Software Support

    • Supported Operating System
      • Windows XP/7/8, x64/x86
    • Driver and SDK
    • LabVIEW, MATLAB, C/C++, Visual Basic, Visual Studio.NET

Ordering Information

  • PCIe-9529 - 8-CH 24-Bit High-Resolution Dynamic Signal Acquisition Module for PCIe bus
