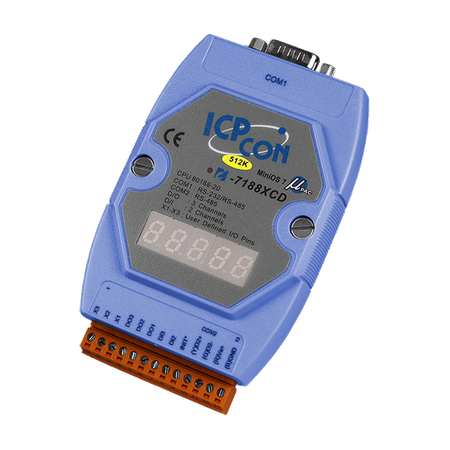

The I-7188XCD-512/RTC is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188XCD-512/RTC controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price. The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188XCD-512/RTC controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, and which I/O Expansion Board, the I-7188XCD-512/RTC can be used as a single versatile controller.
| OS: | MiniOS7 |
| Development: | C Language |
| CPU: | 80188, 20 MHz or compatible |
| EEPROM: | 2 KB |
| Flash: | 512 KB |
| NVRAM: | 31 Bytes |
| SRAM: | 128 KB |
| Real Time Clock: | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer: | Yes |
| Typ: | 5x Digit 7 Segment LED Display ,
Open Collector |
| Status: | 1x System |
| Kanały: | 2 ,
3 |
| Dry Contact, ON Voltage Level: | Close to GND |
| Dry Contact, OFF Voltage Level: | Open |
| Napięcie obciążenia: | +30 VDC max. |
| Max. Load Current: | 100 mA |
| I/O Type: | X-board |
| Porty: | 1x RS-485, 1x RS-232/RS-485 |
| Szybkość transmisji: | 115200 bps Max. |
| Input Range: | +10 ~ 30 VDC |
| Konsumpcja: | 3.0 W |
| Wymiary (mm): | 72x 119x 33 (Wx Hx D) |
| Installation: | DIN-Rail Mounting |
| Temperatura pracy: | -25 ~ +75 °C |
| Temperatura przechowywania: | -30 ~ +80 °C |
| Wilgotność: | 5 ~ 90 %, Non-condensing |
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
Gwarancja 24 miesiące - Gwarancja udzielana przez sprzedawcę na okres 24 miesięcy.
Gwarancja standardowa 24 miesiące
