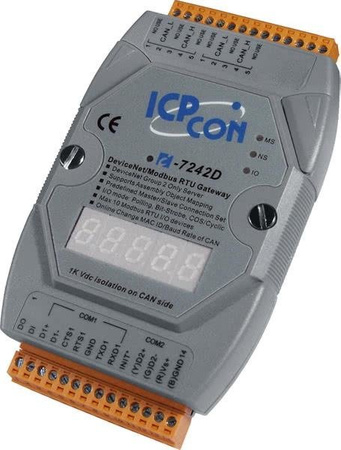

I-7242D-G

  • Bramka DeviceNet slave na Modbus RTU master
  • I-7242D-G
Features
  • DeviceNet Features

    • Group two only server DeviceNet subscriber
    • Dynamic Assembly Objects Mapping
    • On-line change baud rate and MAC ID of CAN
    • NS, MS and IO LED indicators
    • 7-segment LED to show operation mode, MAC ID, baud rate and error code
    • Connection supported:
      1 “Explicit Connection”
      1 “Polled Command/Response” connection
      1”Bit-Strobed Command/Response” connection
      1”Cnange-of-State/Cyclic” connection
    • Configuration facilitated by the use of specific EDS files
    • Dedicated Explicit message interface for full Modbus interface

  • Modbus RTU Features

    • Maximum number of subscribers: 10 Modbus slaves
    • Communication speed: 1200,2400,4800,9600,19200,38400,57600 or 115200 bits/s,
      configured using Utility.
    • Data bits: 8 bits, configured using Utility
    • Parity bits: None, even or odd, configured using Utility
    • Stop bits: 1 or 2 bits, configured using Utility
Specifications
  • Hardware

    • Watchdog: Watchdog IC

  • CAN Interface

    • Controller: NXP SJA1000T with 16 MHz clock
    • Transceiver: NXP 82C250
    • Connector: 5-pin screwed terminal block (CAN_L, CAN_H, N/A for others)
    • Isolation: 1000 Vdc for DC-to-DC, 2500 Vrms for photo-couple
    • Protocol: DeviceNet Volume I ver2.0, Volume II ver2.0

  • UART Interface

    • COM 1: RS-232 (For configuration)
    • COM 2: RS-485 (Self-turner inside)
    • Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
    • Data bit: 7, 8
    • Stop bit: 1, 2
    • Parity: None, Even, Odd
    • Protocol: Modbus RTU

  • LED

    • Round LED: MS LED, NS LED, IO LED
    • 5-digit 7-Segment: Yes

  • Power

    • Power supply: Unregulated +10 ~ +30 Vdc
    • Protection:
      Power reverse polarity protection,
      Over-voltage brown-out protection
    • Power Consumption: 3 W

  • Mechanical

    • Dimensions (W x L x H): 72 x 122 x 33 mm

  • Environment

    • Operating Temp.: -25 ~ +75°C
    • Storage Temp.: -30 ~ +80°C
    • Humidity: 10 ~ 90% RH, non-condensing
Ordering Information
  • I-7242D-G CR – DeviceNet Slave / Modbus RTU Master Gateway (RoHS)
