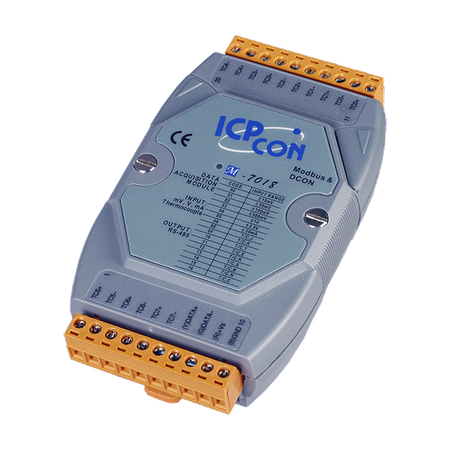

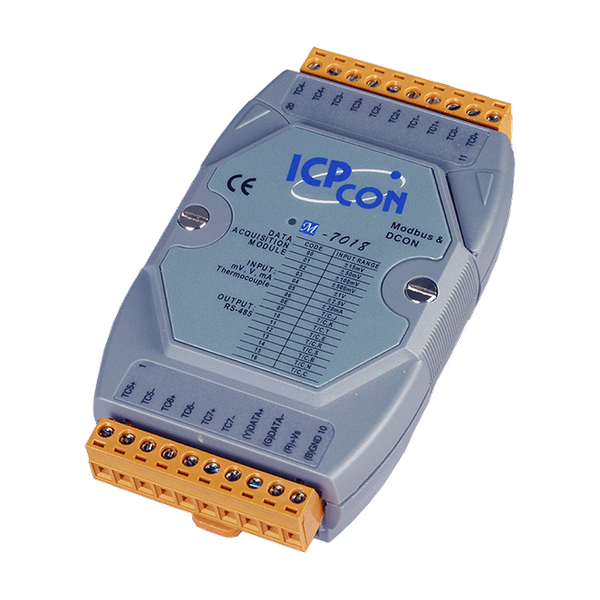

M-7018-G to Moduł Modbus/RTU – 8 wejść analogowych 16-bitowych dla termopar z zab. +/-35 V
Specyfikacja:
Analog Input
- Input Channels: 8 differential
- Input Type:
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
+/-20 mA (requires optional external 125 Ω resistor)
Thermocouple: J, K, T, E, R, S, B, N, C - Resolution: 16-bit
- Sampling Rate: 10 Samples/ Second
- Accuracy: +/-0.1%
- Band Width: 15.7 Hz
- Zero Drift: 0.5 uV/°C
- Span Drift: 25 ppm/°C
- Input Impedance: 20 MΩ
- Common Mode Rejection: 150 dB
- Normal Mode Rejection: 100 dB
- Over Voltage Protection: +/-35 V
- Open Thermocouple Detection: No
- Intra-module Isolation, Field to Logic: 3000 Vdc
Interface
- Interface: RS-485
- Format: N, 8, 1
- Baud Rate: 1200 ~ 115200 bps
LED Display
- 1 LED as Power/ Communication indicator
Power
- Input: +10 ~ +30 Vdc
- Power Consumption: 1.0 W
Protocol
- Support Modbus and DCON Protocol: Yes
Environment
- Operating temperature: -25 ~ +75°C
- Storage temperature: -40 ~ +85°C
- Humidity: 5 ~ 95% RH, non-condensing
Note: We recommend to choose M-7108Z for accurate thermocouple measurement.
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
