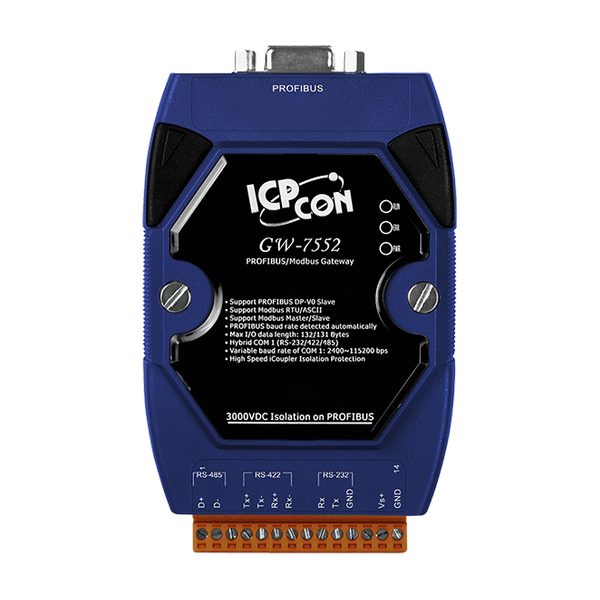

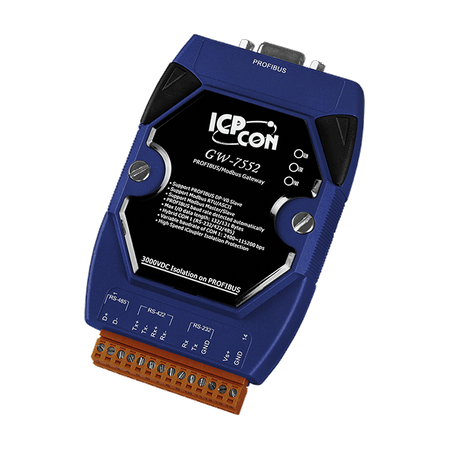

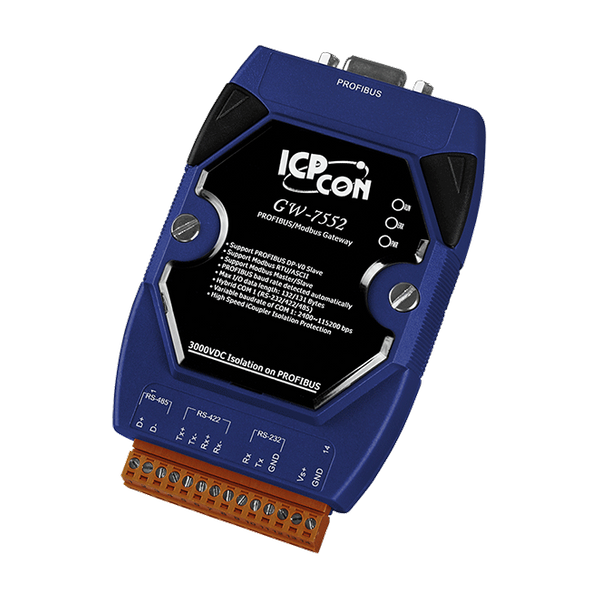

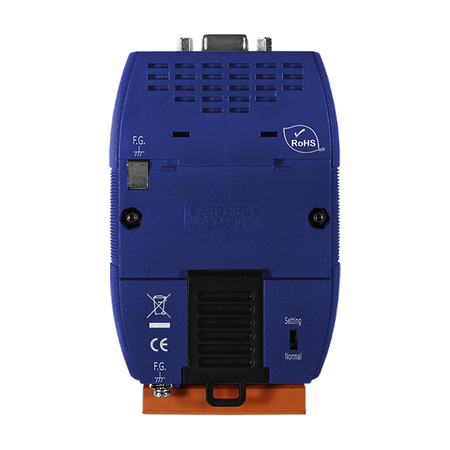

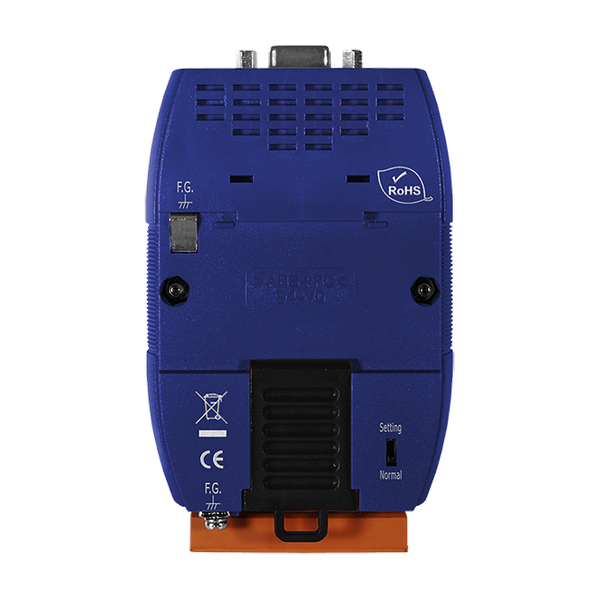

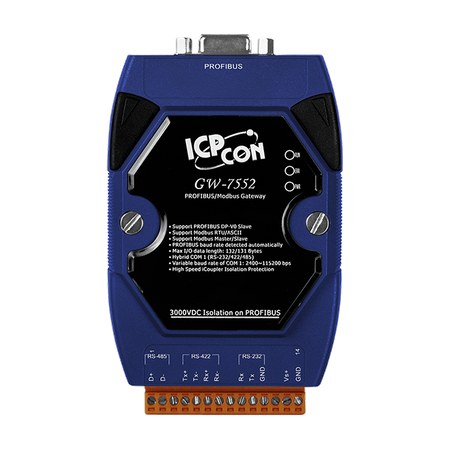

GW-7552 to bramka (gateway) pozwalający urządzenim PROFIBUS master na dostęp do urządzeń z protokołem Modbus RTU (master/slave)
Bramka GW-7552 dostarczana jest z oprogramowaniem narzędziowym, które umożliwia:
- Ustawienie wartości bezpiecznych konfiguracji GW-7552
- Wyświetlanie parametrów GW-7552
- Wyświetlanie adresu modułu GW-7552
Features
- Protocol & Hierarchy: DP-V0 Slave
- Supports PROFIBUS Transmission Rate (Kbps):
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 - Transmission Rate Setting: detected automatically
- Max Input Data Length: 128 Bytes
- Max Output Data Length: 131 Bytes
- Address Setting: 0~126 set by DIP switch
- Supports Modbus Mode: Master/Slave
- Supports Modbus Format: RTU/ASCII
- Hybrid COM 1: RS-232/422/485 with "Self Tuner" inside
- Supports COM 1 Baudrate (Kbps): 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, 115.2
- Supports COM 1 Data Format: 7/8 data bits, No/Odd/Even parity, 1/2 stop bit
- Indicators: PWR, ERR, and RUN LEDs
- Network Isolation Protection: High Speed iCoupler
- DC Isolation Protection: 3000 Vdc on PROFIBUS side
Specifications
- Hardware
- CPU: 80186, 80 MHz or compatible
- SRAM/Flash/EEPROM: 512 KB / 512 KB / 16 KB
- Watchdog:
Watchdog IC
CPU built-in - ESD Protection: 4 kV class A
- PROFIBUS Interface
- Controller: Siemens SPC3
- Transceiver: ADI ADM2486
- Connector: 9-pin female D-Sub
- Baud Rate (bps): 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
- Transmission Distance (m): Depend on baud rate
(for example, max. 1200 m at 9.6 kbps ) - Isolation:
3000 Vdc for DC-to-DC,
2500 Vrms for bus-to-logic - Protocol: DP-V0
- UART Interface
- COM: RS-232/RS-422/RS-485(can’t be used simultaneously)
- COM Connector:
3-pin screwed terminal block (RxD, TxD, GND)
4-pin screwed terminal block (RxD+, RxD-, TxD+, TxD-)
2-pin screwed terminal block (DATA+, DATA-) - Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
- Data bit: 7, 8
- Stop bit: 1, 2
- Parity: None, Even, Odd
- LED
- Round LED: PWR LED, RUN LED, ERR LED
- Power
- Power supply: Unregulated +10 ~ +30 Vdc
- Protection:
Power reverse polarity protection,
Over-voltage brown-out protection - Power Consumption: 2.5 W
- Mechanical
- Installation: DIN-Rail
- Dimensions (W x L x H): 72 x 119 x 33 mm
- Environment
- Operating Temp.: -25 ~ +75°C
- Storage Temp.: -30 ~ +85°C
- Humidity: 5 ~ 95% RH, non-condensing
Ordering Information
- GW-7552-B CR – PROFIBUS/Modbus Gateway (RoHS)
