Features
- 8 relay actuator outputs with on board relay driving circuits
- 8 opto-isolated digital inputs
- LED indicators to show activated relays
- Jumper-selectable AC-filter/non-AC-filter input signals
- Relay Outputs
- Relay Type: Double-Pole-Double-Throw (DPDT)
- Number of Relays: 8 (R0~R4 are in Form C; R5~R7 are in Form A).
- Contact Rating: 0.5A @ 120VAC; 1A @ 24VDC
- Breakdown Voltage: 1000 V AC or DC (minimum)
- Contact Type: Bifurcated
- Insulation Resistance: 100MΩ Max.
- Relay ON/OFF Time: 5 m sec. (typical); 10 m sec (maximum)
- Life Expectancy: > 10 million operations at full load
- Coil Voltage: +12V @33mA for each relay; total 0.264 A if all relay are energized.
- Isolated Inputs
- Number of channels: 8
- Opto-Isolator: PC-814 or compatible
- Input Signal Type: AC (don't care polarity) or DC
- Input Voltage: up to 24VDC or 24VAC 50 ~1,000 Hz
- Threshold Voltage: 2.4VDC
- Input Current: 20 mA (maximum)
- Input Resistor: 1.2 KΩ
- Isolation Voltage: 2500Vrms channel-to-ground
- Response Time: 20 µsec without AC Filter, 2.2 ms with AC Filter
- General Specifications
- I/O Connectors: One 37-pin Female D-type connector,
- Bus Interface: 16-bit ISA Bus
- Operating Temperature: 0° C ~ 55° C
- Storage Temperature: -20° C ~ 80° C
- Humidity: 5 ~ 90%, non-condensing
- Power Consumption:
+5 V 130 mA typical,
+12 V 180 mA maximum, all relays are energized - Dimension: 148 mm (L) x 107 mm (W)

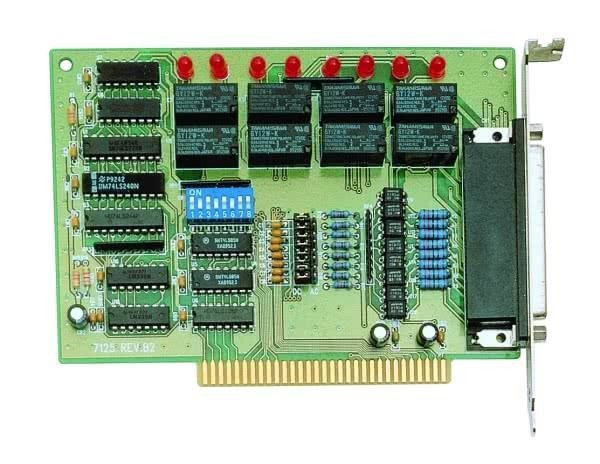

- ACL-7125 - 8-CH Relay Outputs & 8-CH Isolated DI Card
