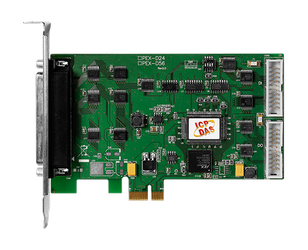

PEX-D24

  • Karta PCIe x1 – 24 programowalne wejścia-wyjścia cyfrowe TTL
  • PEX-D24

Karta PCIe x1 – 24 programowalne wejścia-wyjścia cyfrowe TTL


Features

  • Supports PCI Express x 1
  • Up to 24 channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • 8-bit groups independently selectable for I/O on 24-bit port
  • Double side SMD, short card.
  • Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
  • 4 interrupt sources: PC0, PC1, PC2, PC3
  • One DB37 connector
  • No base address or IRQ switches to set
  • Output status readback

Specifications

  • Programmable Digital I/O

    • Channels: 24

  • Digital Input

    • Digital Input Channels: N/A
    • Compatibility: 5 V/TTL
    • Input Voltage:
      Logic 0: 0.8 V max.
      Logic 1: 2.0 V min.
    • Response Speed: 500 kHz

  • Digital Output

    • Digital Output Channels: N/A
    • Compatibility: 5 V/TTL
    • Output Voltage:
      Logic 0: 0.4 V max.
      Logic 1: 2.4 V min.
    • Output Capability:
      Sink: 64 mA @ 0.8 V
      Source: 32 mA @ 2.0 V
    • Response Speed: 500 kHz

  • General

    • Bus Type: PCI Express x 1
    • Data Bus: 8-bit
    • Card ID: Yes (4-bit)
    • I/O Connector:
      Female DB37 x 1
    • Dimensions (L x W x D): 134 x 86 x 22 mm
    • Power Consumption: 420 mA @ +5 V
    • Operating Temperature: 0 ~ +60°C
    • Storage Temperature: -20 ~ +70°C
    • Humidity: 5 ~ 85% RH, non-condensing

Ordering Information

  • PEX-D24 CR – PCI Express, 24-channel DIO board (RoHS)

Optional Accessories

  • CA-2010 – 20-pin flat cable,1 M

  • CA-2020 – 20-pin flat cable 2 M.

  • CA-3710 – DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45°))

  • CA-3710D – DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180°))

  • CA-4002 – 37-pin Male D-sub connector with plastic cover.

  • DB-24PD – 24-channel of isolated D/I board

  • DB-24RD – 24-channel of relay board

  • DB-24PRD – 24-channel of power relay board

  • DB-24POR – 24-channel of PhotoMos Relay output board

  • DB-24SSR – 24-channel of Solid State Relay output board

  • DB-24C – 24-channel of open-collector output board
