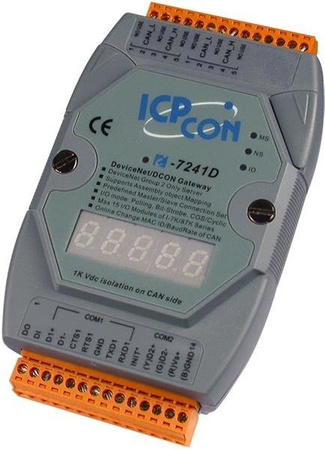

I-7241D-G

  • Bramka DeviceNet slave na DCON master
  • I-7241D-G
Features
  • NMT: Slave
  • Support Predefined Master/slave Connection Set
  • Dynamic Assembly Objects Mapping
  • Support Offline Connection Set, Device Heartbeat message and Device Shutdown message
  • Provide Assembly object
  • Dynamic Product EDS File
  • I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic
  • Support max 15 I-7K/I-87K IO modules
  • Provide friendly Utility to configure
  • Baud Rate: 125Kb, 250Kb, 500Kb
  • On-line change baud rate and MAC ID of CAN
  • 7-segment LED to show operation mode, MAC ID, baud rate and error code
Specifications
  • Hardware

    • Watchdog: Watchdog IC

  • CAN Interface

    • Controller: NXP SJA1000T with 16 MHz clock
    • Transceiver: NXP 82C250
    • Connector: 5-pin screwed terminal block (CAN_L, CAN_H, N/A for others)
    • Isolation:
      1000 Vdc for DC-to-DC,
      2500 Vrms for photo-couple
    • Terminator Resistor: Jumper for 120 Ω terminator resistor
    • Protocol: DeviceNet Volume I ver2.0, Volume II ver2.0

  • UART Interface

    • COM 1: RS-232 (For configuration)
    • COM 2: RS-485 (Self-turner inside)
    • Transmission Distance (m): Depend on baud rate
      (for example, max. 1200 m at 9.6 kbps )
    • Baud Rate (bps): 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
    • Protocol: DCON

  • LED

    • Round LED: MS LED, NS LED, IO LED
    • 5-digit 7-Segment: Yes

  • Power

    • Power supply: Unregulated +10 ~ +30 Vdc
    • Protection:
      Power reverse polarity protection,
      Over-voltage brown-out protection
    • Power Consumption: 3 W

  • Mechanical

    • Dimensions (W x L x H): 72 x 122 x 33 mm

  • Environment

    • Operating Temp.: -25 ~ +75°C
    • Storage Temp.: -30 ~ +80°C
    • Humidity: 10 ~ 90% RH, non-condensing
Ordering Information
  • I-7241D-G CR – DeviceNet Slave / DCON Master Gateway (RoHS)



Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.

Gwarancja 24 miesiące - Gwarancja udzielana przez sprzedawcę na okres 24 miesięcy.

Gwarancja standardowa 24 miesiące
